Pressure Sifter scalps bulk materials at 50 tons/hr.
April 10, 2012 -
Offered in stainless steel and carbon steel with 72 in. diameter, VibroscreenŽ Low-Profile Pressure Sifter removes oversize particles and is engineered to operate under pressure on batch or continuous basis. Connections to incoming line, discharge line for on-size particles, and discharge spout for oversize particles are sealed using pressure sleeve connectors. To minimize height requirements, sifter employs 2 unbalanced-weight gyratory motors mounted on opposing exterior sidewalls.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Kason Corporation
67-71 E. Willow St.
Millburn, NJ, 07041
USA

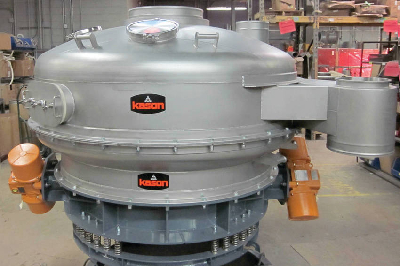

Low-Profile Pressure Sifter
MILLBURN, NJ-A new VibroscreenŽ Low-Profile Pressure Sifter from Kason removes oversize particles at ultra-high rates.
The sealed system can be employed to operate under a blanket of an inert gas, to prevent the escape of hazardous gases and/or to sift in-line with pressurized reactors.
Capable of scalping bulk materials at rates to 50 tons per hour, the 72 in. (183 cm) diameter unit is engineered and constructed to operate under pressure on a batch or continuous basis. Connections to the incoming line, discharge line for on-size particles, and discharge spout for oversize particles are sealed using flexible pressure sleeve connectors.
The low profile "Flo-Thru" design employs two unbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit, instead of one motor positioned beneath the screening chamber, reducing minimum height requirements significantly. The design also aligns the top inlet above the bottom outlet, allowing on-size material to descend through the screen in a straight-through path at high rates. Oversize material is ejected through a spout at the periphery of the screen.
The Pressure Sifter is offered in stainless steel and carbon steel in diameters from 18 to 84 in. (460 to 2135 mm).
The company manufactures numerous types and sizes of gravity-fed, in-line-pneumatic and in-line-pressurized circular vibratory screeners and centrifugal screeners for separating solids from solids or slurries, as well as circular fluid bed processors for batch or continuous drying or cooling of bulk solid materials.
For information contact Kason Corporation, 1-973-467-8140, info@kason.com, www.kason.com
|
|
|
|
|
|
|
|
|
|
|
