Power Modules feature IGBT chips from 8-100 A.
May 19, 2010 -
Available in 3 sizes, MiniSKiiP® PIM Modules are suitable for motor drive applications up to 30 kW. Size 1 measures 42 x 40 mm and is rated for 8 A, 1,200 V to 15 A, 1,200 V, while Size 2, measuring 59 x 52 mm, is rated for 25 A, 1,200 V to 35 A, 1,200 V. Size 3 is 82 x 59 mm and rated for 50 A, 1,200 V to 100 A, 1,200 V. All feature 3-phase input rectifier, 3-phase output inverter, brake chopper, and thermistor to measure temperatures.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Vincotech GmbH
Biberger Straße 93
Unterhaching, ,
Germany
New MiniSKiiP® IGBT4 PIM Modules Debut
-- Vincotech enhances its MiniSKiiP® PIM module range with the latest technology. --
Munich/Germany, - Vincotech, a supplier of module-based solutions for power electronics, today announced that it has added the latest technology to its range of MiniSKiiP® PIM modules. The new modules feature IGBT4 chips ranging from 8A, 1200 V to 100A, 1200V and come in three different housings.

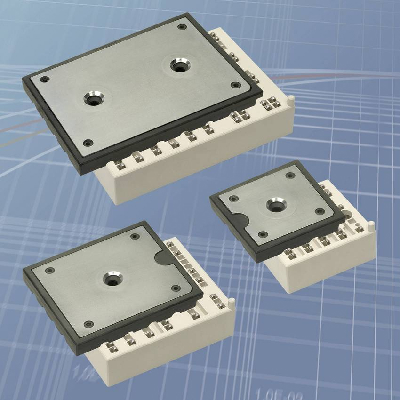

Featuring Infineon's latest IGBT4 chip technology for improved EMC, the new MiniSKiiP® PIM modules come in three sizes for motor drive applications ranging up to 30kW:
o MiniSKiiP® size 1 (42 by 40 mm²) for 8A, 1200V to 15A, 1200 V
o MiniSKiiP® size 2 (59 by 52 mm²) for 25A, 1200V to 35A, 1200V
o MiniSKiiP® size 3 (82 by 59 mm²) for 50A, 1200 V to 100A, 1200V
All modules feature a 3-phase input rectifier, a 3-phase output inverter, a brake chopper, and an added thermistor to measure temperatures (PIM topology). Pins match the previous version's array to enable easy upgrading, and they are fully compatible with the Semikron equivalent. Vincotech's website provides cross-references and datasheet downloads. These modules are now in serial production, and samples may be ordered from the standard sales channels.
To learn more, please visit http://www.vincotech.com/en/products/....
Vincotech is a registered trademark.
MiniSKiiP® is a registered trademark of Semikron.
ABOUT VINCOTECH
Vincotech develops and manufactures subsystems and electronic components and offers manufacturing services geared to help customers master complex challenges in electronics integration. Vincotech's extensive portfolio encompasses standard and tailored solutions, engineering services, and technical support for customers worldwide. These products and services contribute to sustainable, environmentally sound solutions that help modern society embrace mega-trends and explore new avenues.
With approximately 500 employees worldwide, backed by vast experience and a long history in electronics integration, Vincotech leverages these assets to help customers achieve maximum market success.
To learn more about Vincotech, please visit www.vincotech.com.
|
|
|
|
|
|
|
|
