Power Amplifiers serve 13 and 15 GHz PtP radio applications.
March 8, 2013 -

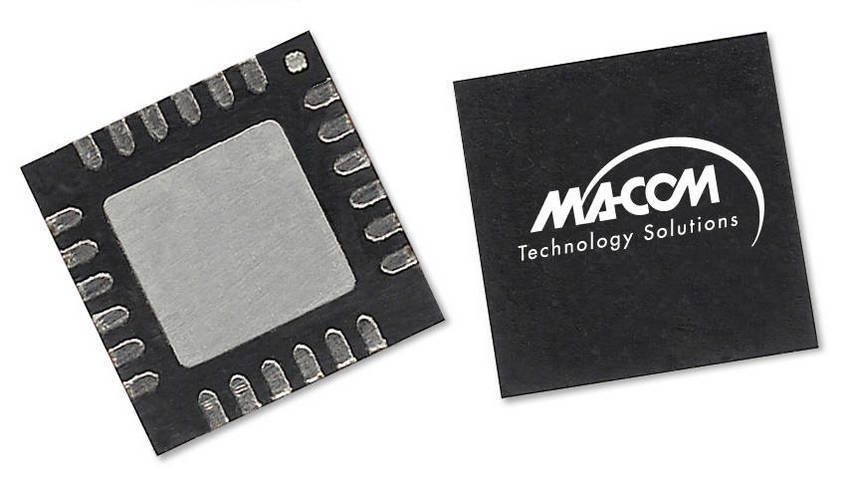

Supplied in fully molded, 5 x 5 mm, plastic QFN package, MAAP-010516 and MAAP-010517 are comprised of 3-stage power amplifier with integrated, temperature-compensated, on-chip power detector. Both are suited for point-to-point (PtP) radios for cellular backhaul applications and feature on-chip ESD protection structures with DC bypass capacitors. Respectively, MAAP-010516/-010517 are optimized for performance over 12.75–13.25 GHz and 14.5–15.35 GHz ranges.
Original Press release
M/A-COM Technology Solutions, Inc.
100 Chelmsford Street
Lowell, MA, 01851
USA
M/A-COM Technology Solutions Announces Two New Power Amplifiers for 13 and 15 GHz Point-to-Point Applications
Amplifiers Boast Excellent Performance for Easy and Efficient Implementation into Cellular Backhaul Applications
Lowell, MA–M/A-COM Technology Solutions Inc. (“M/A-COM”), a leading supplier of high performance analog semiconductor solutions, today announced two power amplifiers for point-to-point (PtP) radios for cellular backhaul applications.
The MAAP-010516 and MAAP-010517 are designed for customers who need a convenient and high power amplifier solution for PtP applications. Packaged in a fully molded 5x5mm plastic QFN, the amplifiers include on-chip ESD protection structures with DC by-pass capacitors, allowing customers easy implementation and volume assembly of the packaged parts. The amplifiers boast excellent performance over the 12.75-13.25 GHz (MAAP-010516) and 14.5-15.35GHz (MAAP-010517) frequency range, providing customers a higher performing, more efficient, and more cost effective solution than competing parts.
The MAAP-010516 and MAAP-010517 provide a small signal gain of 23dB and 24dB respectively, with a third order intercept point (OIP3) of 42dBm. The devices are comprised of a three stage power amplifier with an integrated, temperature compensated on-chip power detector, which omits the customer’s need for a complex and costly discrete or printed detector.
“The MAAP-010516 and MAAP-010517 are ideal for customers looking for high performance, power efficient amplifier solutions which meet the needs of current and next generation PtP microwave radios.” said David Richardson, Market Director, Wireless Infrastructure. “The QFN packaging makes these devices compatible with standard SMD assembly lines. In addition, the devices are package, pin-out, biasing, and performance compatible which each other, allowing for easy board layouts and common supporting circuitry.”
The table below outlines typical performance:
|
Parameter |
Units |
MAAP-010516 |
MAAP-010517 |
|
Frequency |
GHz |
12.7 – 13.3 |
14.4 – 15.4 |
|
Small Signal Gain |
dB |
23 |
24 |
|
Input Return Loss |
dB |
15 |
11 |
|
Output Return Loss |
dB |
12 |
11 |
|
Noise Figure |
dB |
7 |
7 |
|
P1dB |
dBm |
34 |
34.5 |
|
PSAT |
dBm |
34.5 |
35.5 |
|
Output IP3, +20dBm SCL |
dBm |
42 |
42 |
Production quantities and samples of MAAP-010516 and MAAP-010517 are available from stock. Final datasheets and additional product information can be obtained from the M/A-COM website at: www.macomtech.com
