Power Amplifier (8 W) targets S-Band radar applications.
August 14, 2012 -
Operating over 2.5-3.5 GHz range, MAAP-010171 two-stage, 8.0 W, pulsed power amplifier is fully matched to 50 ohms on input and output. Device is 100% RF tested to ensure performance compliance and fabricated using pHEMT Process. Packaged in 5 x 5 mm, 20-Lead PQFN package to facilitate assembly, product offers 27 dB gain and 38% power added efficiency. Device can be used as power amplifier stage or driver stage in high power pulsed radar applications.
Original Press release
M/A-COM Technology Solutions, Inc.
100 Chelmsford Street
Lowell, MA, 01851
USA
M/A-COM Technology Solutions Announces New 8-Watt Power Amplifier
S-Band Amplifier Exhibits Strong Linear Gain and High Efficiency
Lowell, MA - M/A-COM Technology Solutions Inc. (M/A-COM Tech), a leading supplier of high performance analog semiconductor solutions, introduced today a new power amplifier for S-Band radar applications.
Operating between the 2.5 GHz - 3.5 GHz S-Band frequency range, the MAAP-010171 is a 2-stage, 8.0 W pulsed power amplifier. The MAAP-010171 is fully matched to 50 ohms on both the input and output.

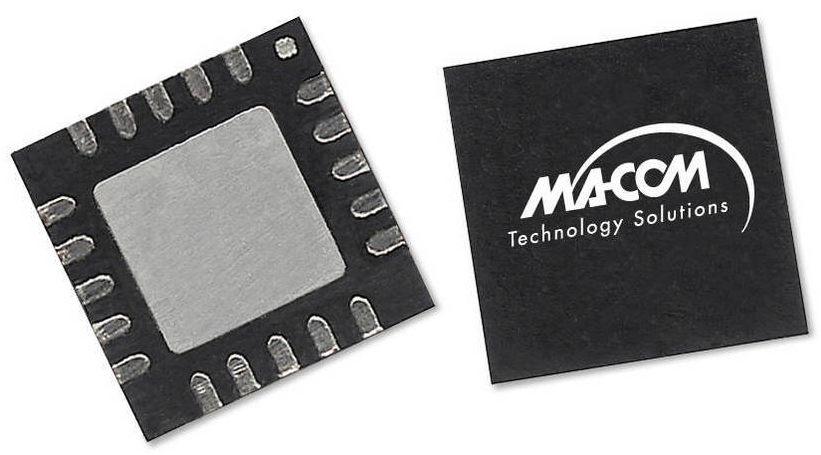

Each device is 100% RF tested to ensure performance compliance. The part is fabricated using M/A-COM Tech's high linearity pHEMT Process. With gain of 27dB and efficiency of 38%, the MAAP-010171 is packaged in 5x5mm 20-Lead PQFN package, allowing for easy assembly.
"This device is an integral part of our S-Band radar product portfolio," said Scott Vasquez, Product Manager. "With its 8 Watt saturated output power, 27dB gain, and 38% power added efficiency, the MAAP-010171 is well positioned to be used as a power amplifier stage or as a driver stage in high power pulsed radar applications."
The table below outlines typical performance:
Parameters Units MAAP-010171
Gain dB 27
Input Return Loss dB 10
Output Return Loss dB 10
Psat dBm 39
Small Signal Current (IDD) A 1
Efficiency % 38
Production quantities and samples of MAAP-010171 are available from stock. Final datasheets and additional product information can be obtained from the M/A-COM Tech website at: www.macomtech.com
