Positioning Stage offers travel distances from 600-1,500 mm.
May 27, 2009 -
Providing repeatability of ±1 micron, model PMT320 features load capacity of 500 kg. Flatness and straightness run-out is ±2 microns over any 100 mm travel. Unit features 320 mm wide die-cast base profile, 1,000 mm stroke stage weighing 70 kg, size 25 precision linear profile rails for linear guidance, and linear encoder. It is available with 2 drive options, with maximum acceleration up to 5 m/sec² and speed up to 500 mm/sec², depending on drive chosen.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Steinmeyer Inc.
11 DeAngelo Dr.
Bedford, MA, 01730
USA

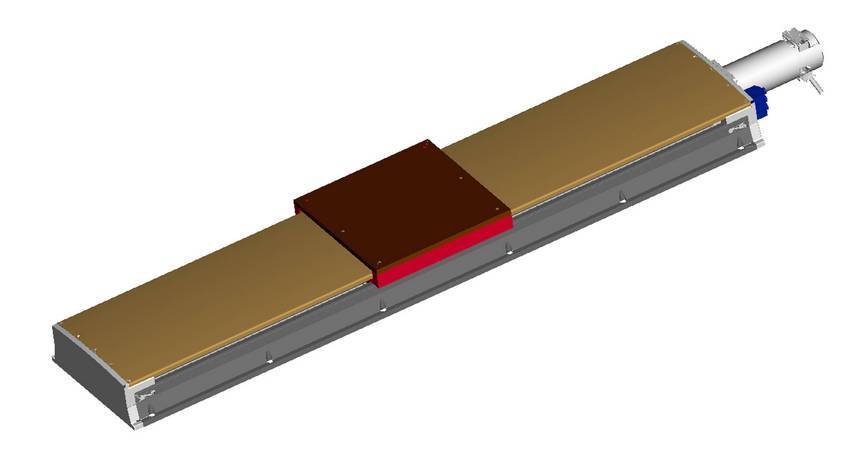

High Precision Positioning Stage for Long Travel
BURLINGTON, MA, May 22, 2009 - Steinmeyer, Inc. announced an exciting new addition to its line of precision linear stages. Manufactured by our FMD division, Dresden Germany, the model PMT320 offers a repeatability of +/- 1 micron, excellent straightness run-out accuracy and travel distances from 600 to 1500 mm. The stage has a 320 mm wide die cast base profile and the 1000 mm stroke stage weighs 70 kg.
The PMT320 series offers two drive options, a servo linear motor or DC rotary motor with precision ground ball screw. Position feedback is provided by a linear encoder. Depending on the drive chosen, maximum acceleration of 5 m/s² and maximum speed of 500 mm/s² can be achieved.
Linear guidance is provided by size 25 precision linear profile rails, which gives the PMT320 a load capacity of 500 kg. Flatness and straightness run-out is +/- 2 microns over any 100 mm travel.
For harsh environments, an optional steel cover is available to protect the components. This stage is ideal for applications in laser technology (laser cutting), automation, metrology and solar technology (e.g. thin film) markets.
The Steinmeyer group is comprised of two manufacturing divisions located in Germany. August Steinmeyer GmbH & Co. KG (located in Albstadt) has been setting standards for high precision ball screws for over 40 years and prides itself on high quality, innovative designs to meet demanding customer requirements. Our Feinmess Dresden (FMD) division has been producing an extensive line of high precision positioning systems for well over 130 years.
For further information on this new product or others in our extensive product portfolio call 1-781-273-6220 or visit the Steinmeyer group at the following web site: www.steinmeyer.com
|
|
|
|
|
|
|
|
