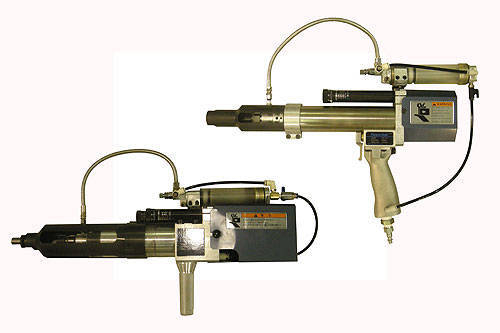

Portable Pneumatic Drilling Units target aerospace industry.
December 3, 2009 -
Designed to streamline drilling applications on large wing and fuselage assemblies, portable air powered Pneucon Selfeeders provide TIR of less than .0006 in. and deliver .0008 in. repeatability on depths. Double Hydro-Speed Regulator technology produces fine holes without burrs, and unit is equipped to provide cutting oil directly to tool tip where lubrication is most needed. Nose-mounted unit can be used in fixtures with precision collet holders and clocking bushing fixtures.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Sugino Corp.
1380 Hamilton Parkway
Itasca, IL, 60143
USA
Sugino Introduces Portable Pneumatic Drilling Units for the Aerospace Industry
Itasca, IL - Sugino Corp. introduces its entry into portable pneumatic drilling units specifically designed for the aerospace industry. The Pneucon Selfeeder (TM) Family is currently being developed with cooperation of some of the World's largest aerospace manufacturers to streamline drilling applications on large wing and fuselage assemblies. The portable air powered Pneucon Selfeeders are designed to provide very tight T.I.R. less than .0006" and deliver .0008" repeatability on depths. The typical nose mount unit to be used in fixtures with precision collet holders and clocking bushing fixtures.
The prototype units released incorporate a requested design feature from Sugino's field tested Double Hydro-Speed Regulator technology which will produce fine holes without burrs. The rapid approach of the drill is slowed when the primary control feed rate regulator is engaged prior to entering the part, as the drill approaches its preset depth, the secondary control feed rate regulator further slows the drilling unit to virtually eliminate burrs on breakthrough. Pneucon Feeders have a precision spindle and a built-in guide bar to create tighter tolerances vs. the existing pneumatic drills used in the industry and offer through the tool coolant delivery.
Pneucon Feeders have a precision machined turbine for smooth operation without vibrations. They operate with positive air pressure in both forward and reverse directions. Pneucon Feeders are operated exclusively on compressed air for ease of use and safety. One key advantage is the unit is equipped to provide cutting oil directly at and through the tooling to the tool tip where lubrication is most needed; this feature can extend tool life and provide superior drilling capabilities
About Sugino Corp.
Sugino, a diverse corporation, offers some of the finest manufacturing equipment available on the market today. With its roots established back in 1936, Sugino is pleased to offer reliable, high quality products, which are separated into four main categories: Selfeeder Drill Line, High Pressure Cleaning and Deburring, High Pressure Pumping Systems and Super Roll Roller Burnishing Tools.
