Portable Picoammeter measures very low DC curents.June 17, 2011 -
Measuring 2.7 x 1.4 x 3.7 in., PocketPico Picoammeter measures very low DC current from 20 pA to 2 mA. USB-connected device eliminates harmful switching spikes and reads at 15,000 samples/sec with ±0.5% accuracy. When connected to PC, meter uses Windows-compatible PocketPicoReader software to display readings. Applications include photodiode current and dark current measurement, ion beam monitoring and measurement, optical fiber alignment, and materials resistance testing.
Original Press release
Saelig Co., Inc.
1160-D2 Pittsford-Victor Rd.
Pittsford, NY, 14534
USA
Saelig's New Tiny Picoammeter Eliminates Voltage Transients

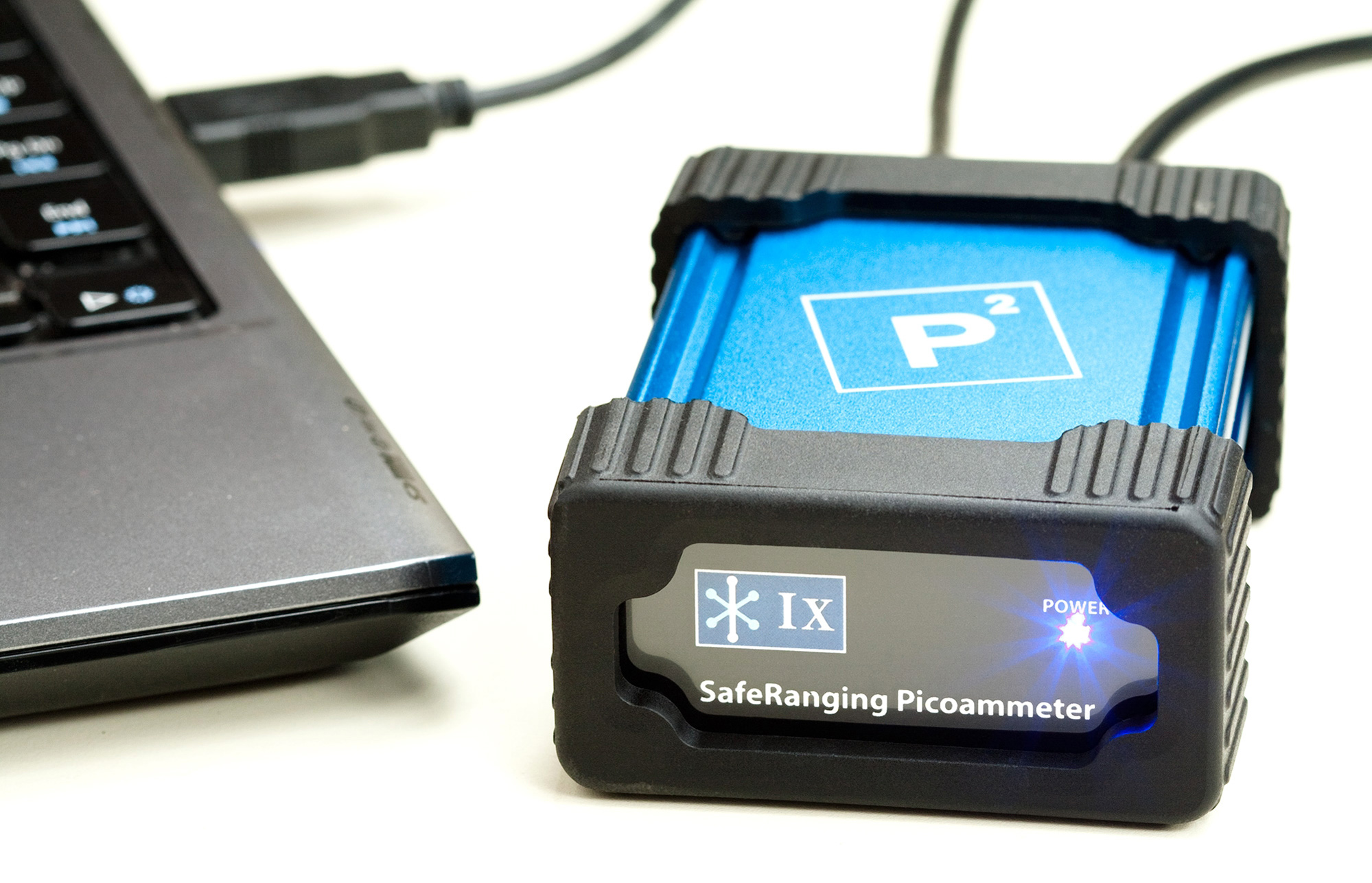

Pittsford, NY, USA: PocketPico Picoammeter is a new, USB-connected; very low current measurement device for DC current from 20pA to 2mA. Tiny (2.7" × 1.4" × 3.7"), lightweight (8oz) PocketPico Picoammeter eliminates harmful switching spikes and reads at a rapid 15,000 samples per second. Perfect for lab test setups, PocketPico Picoammeter's high accuracy, fast speed, and single measurement range brings new features previously unavailable in other picoammeters, like small size, single 20pA - 2mA measurement range at 15,000 Sa/s, high accuracy (±0.5%) and resolution (4½ digits), protection against voltage transients, etc.
PocketPico Picoammeter is dedicated to the task of measuring very low electrical current in optoelectronics, ion and electron beam monitoring, materials resistance testing and more. When connected to a PC, PocketPico Picoammeter accurately measures current from 20pA - 2mA and displays it using the free Windows-compatible easy-to-use PocketPicoReader software on the PC's display.
PocketPico Picoammeter is one of the easiest and most affordable ways of measuring a wide range of extremely low current. Simple to integrate with existing lab tasks, it avoids using bulky equipment simply to take low power measurements, especially for field use. PocketPico Picoammeter could potentially save users thousands of dollars on instrument costs, software licenses and expensive data acquisition equipment.
Applications for PocketPico Picoammeter include: photodiode current and dark current measurement, ion beam monitoring and measurement, SEM and TEM beam current measurement, optical fiber alignment, component, sensor, and device I-V characterization, materials resistance testing, leakage current testing, analog and mixed-signal circuit testing & analysis, teaching labs, product demonstrations, etc.
PocketPico Picoammeter is available now at $1199.00 from Saelig Company. Inc. Pittsford NY. For detailed specifications, free technical assistance, or additional information, please contact Saelig 1-888-7SAELIG, via email: info@saelig.com, or visit www.saelig.com.
About Saelig Company, Inc. Founded in 1988 in Rochester, New York, Saelig is a North American distributor with a growing reputation for finding and sourcing unique, easy-to-use control and instrumentation products and related active components, for use in a variety of industries, including: automation, automotive, aerospace & defense, computers, controls, embedded systems, medical & pharmaceutical manufacturing, motion control, R&D, wireless, etc. Products lines are continuously added from sources across the globe, and are offered at highly competitive prices, accompanied by full in-house technical support, exceptional customer service, and fast delivery. For full details of available product lines, please visit www.saelig.com.
