Portable Metal Hardness Tester is accurate within ±0.5%.
March 22, 2005 -
Capable of conversion from HL to HRC, HRB, HB, HV, and HS, metal hardness (Leeb) tester TH160 is available with 6 impact devices: D, DC, D + 15, C, G, and DL. Device provides automatic identification of impact devices, allows for user calibration, and accepts 5 impact directions: 0°, ±45°, and ±90°. Featuring on-board memory for 240-1,000 groups of data, unit is equipped with ink-free printer and 320 x 200 backlit LCD that displays data and histogram.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Paul N. Gardner Co., Inc.
316 N.E. 1st St., Dept. TR
Pompano Beach, FL, 33060 6608
USA

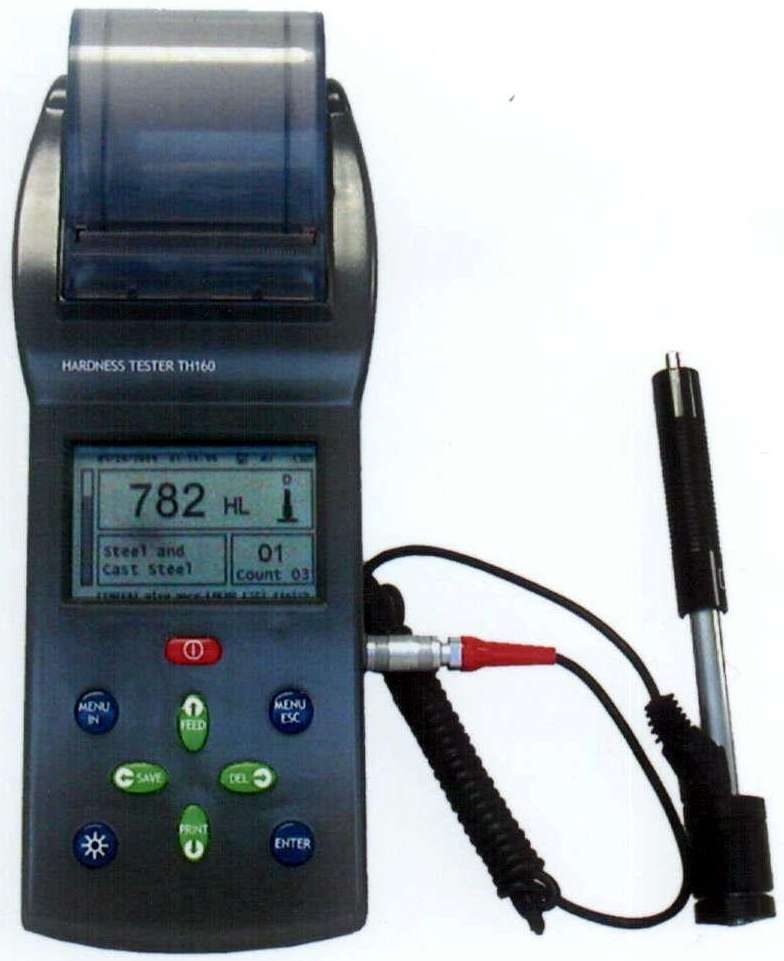

Metal Hardness Tester TH160
o Metal hardness (Leeb) tester
o Conversion from HL to HRC, HRB, HB, HV and HS
o 6 impact devices available (D, DC, D + 15, C, G and DL)
o Automatic identification of impact devices
o User calibration capability
o 5 impact directions (0°, ±45°, ±90°)
o Large 320x200 LCD with backlights displays data and histogram
o On-board memory holds 240-1000 groups of data
o Built-in Noise-free and ink-free printer
o Software to connect with PC
o Upper/lower limits setting and alarm
o Conversion from hardness to tensile strength
o Battery low indication and sound alarm
Specifications
Hardness scale: HL, HRC, HRB, HB, HV and HS
Tensile strength range (steel only): sigmab:374-2652 (MPa)
Impact device: D (standard), DC/D + 15 / C / G / DL (optional)
Accuracy: Within ±0.5% (HLD=800)
Statistics function: Average / Max. / Min. value calculation
Limits setting and alarm
Memory: 240-1000 groups of data
Work piece radius (convex / concave): Rmin=50mm (Rmin=10mm with support rings
Min. depth of hardened surface: 0.2mm (Impact device C)
Power supply: 3.6V NiMH Rechargeable batteries
Charger: 12V D.C. 600mA
Charging time: 2 hours
Operating temperature: 0° to 40°C
Dimensions: 270 x 86 x 47mm
Weight: About 675g
