Portable Data Acquisition System measures up to 250 Vrms.
August 15, 2011 -
Designed for capturing high frequency data and transient signals as well as long-term trending, Dash® MX records up to 8 channels of isolated voltage inputs to internal 320 GB hard drive at sample rates up to 200 kHz/channel. Unit is housed in 13.25 x 12 x 5.3 in. case with 12 in. color display for touch-screen control as well as real-time data viewing and analysis. Operating on 100-264 Vac, Dash MX includes internal rechargeable battery for power backup and up to 30 min of operation.
Original Press release
Astro-Med, Inc.
600 E. Greenwich Ave.
West Warwick, RI, 02893
USA
Portable Multi-Channel Data Acquisition System Offers Host of Advanced Features

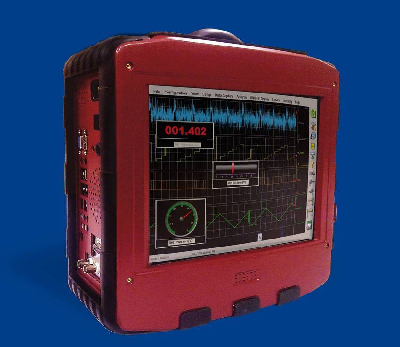

A powerful new lightweight and compact portable data acquisition system has been introduced by Astro-Med, Inc. Designated the Dash® MX, the full-featured high speed multi-channel system is designed and engineered for capturing high frequency data and transient signals as well as long term trending.
The standard Dash MX records up to 8 channels of isolated voltage inputs to an internal 320 GByte hard drive at sample rates up to 200 KHz per channel. High frequency data captures can be saved directly to hard drive for review and post analysis. Includes support for IRIG time codes A, B & E.
Equipped with a 12" color display for intuitive touch-screen control as well as real-time data viewing and analysis, the graphical user interface of the Dash MX is optimized for ease of use. Simple menus permit the user to set most parameters using one touch buttons and checkbox controls.
The system is built into a compact (13.25"L x 12"W x 5.3"H), lightweight (20 lbs including input modules), and rugged case for field or lab use. Operating on 100 to 264 VAC, the Dash MX includes an internal rechargeable battery for power backup and up to 30 minutes of operation.
The Dash MX comes equipped with isolated single-ended inputs that accept up to 250 VRMS. The Dash MX-H version is equipped with high voltage modules that can measure up to 1000 VRMS. Other signal input modules include thermocouple, bridge, piezoelectric and universal.
The versatile digital signal processing of the Dash MX provides a wide variety of capabilities, including low-pass, high-pass, band-pass and band-stop filtering. Derived channels (calculated channels based on user defined equations), variable sample rate during capture, and up to four sample rates per capture are some of the new, innovative capabilities of the Dash MX.
Designed for applications ranging from process trending to transient capture to remote troubleshooting, the Dash MX is portable and rugged enough to handle any environment. The unit is ideally suited for applications in the automotive, aerospace, electric utility, telecommunications, pulp and paper, metals manufacturing, steel mills, R&D labs, medical and other industrial, scientific, and educational fields.
Prices for the Dash MX complete with four modules for eight 250 VRMS inputs start at $9,995.00. It is available 6-8 weeks after receipt of order. More information about the Dash MX can be obtained from Astro-Med, Inc., Test and Measurement Product Group, Astro-Med Industrial Park, W. Warwick RI 02893. Phone Toll-Free 877-867-9783, e-mail mtgroup@astromed.com, or visit http://www.astro-med.com/.
|
|
|
|
|
|
|
|
