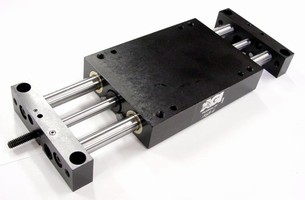

Pneumatic Slide Actuators provide smooth positioning.
September 28, 2005 -
Offering repeatability to 0.01 in., AGS Series linear base slides have integral pneumatic cylinder and recirculating ball bearings. They come in .750, 1.00, and 1.250 in. bore sizes with choice of 1 in. increments to 6 in. max travel lengths. End stops are adjustable, and hydraulic dampers are used at end of travel. Aluminum body and end blocks, which are bolted onto shafts, feature threaded mounting holes and precision holes for accepting location dowels.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
AGI - American Grippers Inc.
171 Spring Hill Rd.
Trumbull, CT, 06611
USA
Pneumatic Powered Slide Actuator Provide Smooth and Accurate Positioning.
AGI announces the release of two additional sizes for the AGS Series Slide. Originally offered a .750 inch bore size, the AGS Series Slide is now also available in bore sizes of .750, 1.00 and 1.250 inches. All three sizes offer a choice of 1-inch increments to 6-inch maximum travel lengths to fit a wide range of applications.
AGI pneumatic linear base slides have an integral pneumatic cylinder and high-precision recirculating ball bearings. The end stops are adjustable, and hydraulic dampers are used at the end of travel. The aluminum body and end blocks feature threaded mounting holes and precision holes for accepting location dowels. The end blocks are bolted onto the shafts to keep them from moving making this makes a ridged precision slide and repeatability is an impressive 0.01-inch.
The AGS slides can be ordered with linear ball bearings or Polycarbonate composite bearings are also available; end positions are adjustable and may be sensed using Proximity sensors to signal the end positions. The AGS Series Slide is available in imperial and metric versions and offer standard 2-day delivery.
AGI - American Grippers Inc.
Peter Farkas
171 Spring Hill Rd.
Trumbull, CT. 06611
www.agi-automation.com
|
|
|
|
|
|
|
|
