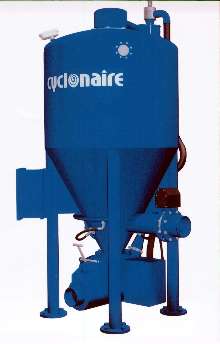

Pneumatic Conveyors handle high-capacity jobs.
August 21, 2003 - Series HC Semi-Dense Phase Conveyors use only positive air pressure for vacuum loading and pressurized conveying of single or multiple ingredients. They use 15 psig convey air to move materials at balanced combination of intermediate line velocities between 2,000—3,000 fpm. Standard units offer capacities up to 80 tons/hr. Conveyors can handle materials that are abrasive and fluidizable and are suited for bulk bag, railcar, and trailer unloading and in-plant transfer.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Cyclonaire Corp.
2922 N. Division Ave., P.O. Box 366
York, NE, 68467
USA
Cyclonaire HC Conveyors Handle High Capacity Jobs
YORK, NE - HC Series Semi-Dense Phase Conveyors from Cyclonaire Corporation offer a new range of high-capacity semi-dense phase pneumatic conveying for single or multiple ingredients.
They are designed to handle materials that are abrasive and fluidizable. Standard units have conveying capacities up to 80 tons per hour and more, depending on model and application. HC
Conveyors can be used for bulk bag, railcar, and trailer unloading and in-plant transfer. Equipped with optional load cells, HC Conveyors can weigh and batch and provide inventory control.
HC Series Conveyors use only positive air pressure for both vacuum loading and pressurized conveying, and Cyclonaire makes high-efficiency medium-pressure blower packages specifically
tailored to the job. A proprietary Cyclonaire venturi assembly creates the vacuum used for loading. In vacuum mode, the conveyor fills its transfer vessel by drawing material from one or more storage silos, hopper-bottom railcars, trailers, or other supply sources. Cycling between loading the transfer vessel and unloading it is automatic. A high-level control senses when the transfer vessel is full and automatically switches to the pressurized discharge mode for conveying material from the vessel to its destination. Integral dust separation minimizes venturi wear.
Side inlet loading is an option for applications with limited headroom. Side inlets reduce both overall and vacuum height and may be located low in the transfer vessel for fine, aeratable
materials. Because HC units operate only on positive airflow, there is no need for high-maintenance filtration. Standard automated controls allow for minimal operator supervision. A
variety of control options are available that can be integrated into existing plant control platforms.
Conventional conveying systems often have significant problems with particle degradation, abrasion, and system wear when moving abrasive materials like cement. But because of their unique design, Cyclonaire HC Conveyors are inherently superior in handling abrasives. They use 15-psig convey air to move materials at a balanced combination of intermediate line velocities between 2000 and 3000 fpm and high material-to-air ratios to minimize abrasion and optimize efficiency.
Carbon steel transfer vessels are standard. Stainless steel and epoxy coated models are available, as are portable HC Conveyor models and custom-built units. Other options include load cells,
multiple inlets, and a butterfly outlet valve.
Cyclonaire is a manufacturer of bulk material handling systems and controls, specializing in pneumatic conveying. The company supplies components as well as complete dilute, dense, and
semi-dense phase conveying systems. Its services range from concept engineering and project management through start-up supervision. Industries served include cement, chemical, battery, food, foundry, milling, mineral, railroad, and rubber.
To see photographs, dimensional drawings, and specifications for Cyclonaire Conveyors and other company products, visit the Cyclonaire Web site at www.cyclonaire.com. For more information and free literature, contact Cyclonaire Corporation, PO Box 366, York, NE 68467-0366; call 1-800-445-0730 or 1-402-362-2000; or send e-mail to sales@cyclonaire.com.
|
|
|
|
|
|
|
|
