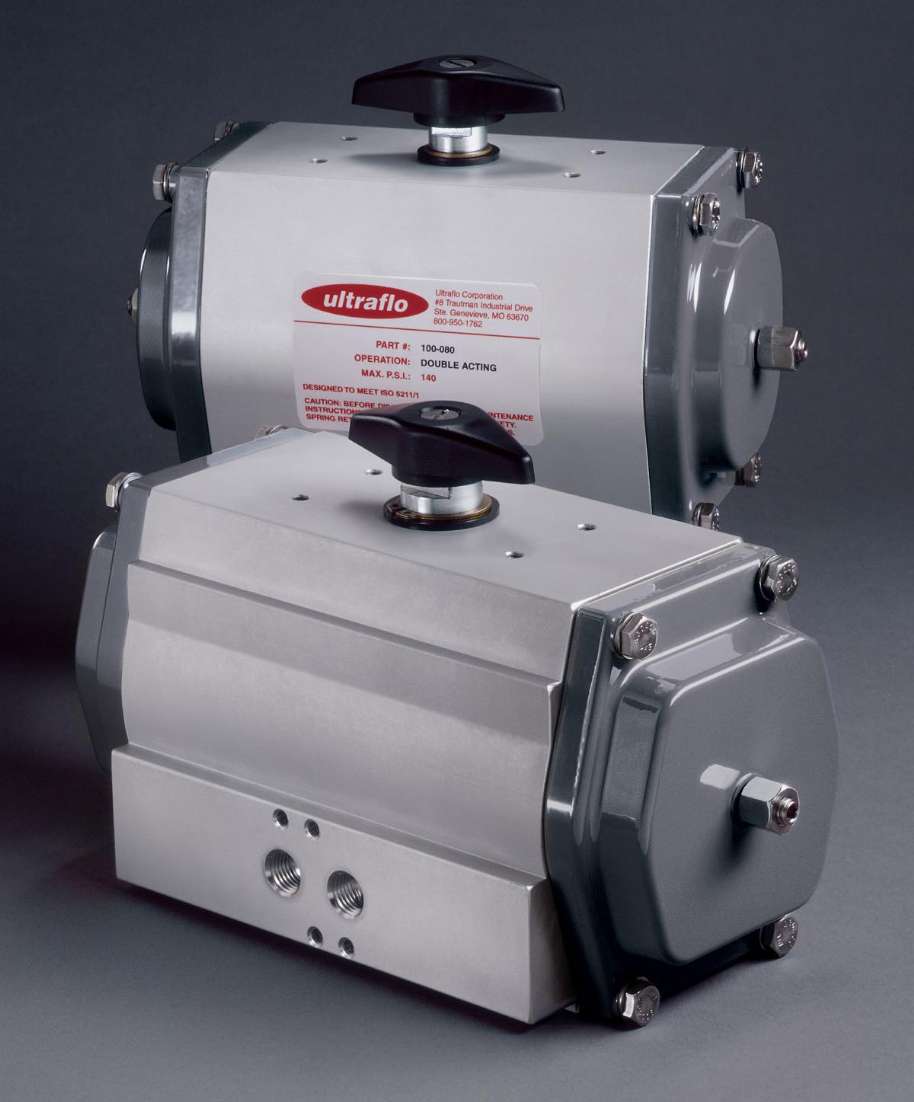

Pneumatic Actuator is fully enclosed and self-contained.
June 18, 2004 - Series 100 pneumatically driven rack and pinion actuator is available in double acting and spring return designs, both providing 90° rotation. Actuator provides pneumatic actuation up to 140 psig at temperatures from -40° to +200°F, and supports alternative media such as hydraulic oil and water. Eight models provide output torques at 80 psi from 300-29,000 lb-in. Features include pre-loaded, contained cartridge spring packs in the spring return units.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Ultraflo Corp.
No. 8 Trautman Industrial Dr., P.O. Box 423
Sainte Genevieve, MO, 63670
USA
New Rack & Pinion, Double Acting & Spring Return Pneumatic Actuators, Size O6 to 26.
Ste. Genevieve, MO–June 15, 2004–Ultraflo has announced the 100 Series actuator product line. The 100 Series is a pneumatically driven rack and pinion actuator available in double acting and spring return designs, both providing a 90° rotation. The 100 Series features a compact, economical package incorporating many standard features only offered as options on many competitive models. Eight different models provide output torques at 80 psi from 300 lb. inches up through 29,000 lb. inches.
The 100 Series offers mounting to the complete line of Ultraflo butterfly valves, as well as NAMUR standards for mounting of Ultraflo accessories. The 100 Series actuators are designed primarily for pneumatic actuation up to a maximum pressure of 140 psig (10 Bar) and for temperatures ranging from -40°F (-40°C) to +200°F (+95°C). These actuators are also available for operation with alternative media such as hydraulic oil and water.
Special features include pre-loaded, contained cartridge spring packs in the Spring Return units. The spring packs offer enhanced safety, ease of maintenance and reduced space requirements. Conversion between Spring Return and Double Acting units is accomplished simply by the insertion or removal of the spring packs. All other components are identical. The pre-loaded spring packs eliminate the need to control spring tension by the end caps and retaining bolts.
The Ultraflo 100 Series pneumatic actuator is a fully enclosed and self-contained unit designed for ease of use and maintenance. Integral porting eliminates the need for costly, cumbersome and easily damaged external tubing. Integral travel stops are housed in each end cap to precisely control the degree of travel operation.
Double acting units have a constant output torque throughout travel from start to end, clockwise or counterclockwise rotation.
Ultraflo, A Subsidiary of Bray International, Inc, is headquartered in Ste. Genevieve MO, and is a leader and innovator in process control automation. Products include automated and manual butterfly valves, pneumatic and electric actuators, valve status monitors, electro-pneumatic and pneumatic positioners, solenoid valves and control accessories. For more information, contact Ultraflo at 8 Trautman Industrial Drive, Ste. Genevieve MO 63670. Phone: 800-950-1762; Fax: 573.883.8882 www.ultraflovalve.com.
|
|
|
|
|
|
|
|
