Pin Grid Array Extractors grab device from both sides.
February 18, 2010 -
Available with 2 or 4 support legs, Pin Grid Array Extractors have adjustable grip claws with screw lock downs that gently remove PGA from socket as operator turns extraction screw. Surrounding components can be as close as .100 in. without interfering. Two-leg model extracts components of 10 x 10 or greater, while 4-leg model pulls PGAs of 16 x 16 to 22 x 22, lifting component by supporting all 4 sides. With lift stroke of 15 mm, both allow removal of PGAs with heat exchangers attached.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
FKN Systek, Inc.
86 Kendall Ave.
Framingham, MA, 01702
USA
Pin Grid Array Extractor in Two Sizes from FKN Systek
Two fully adjustable grip claws with screw lock downs grab the device from both sides.

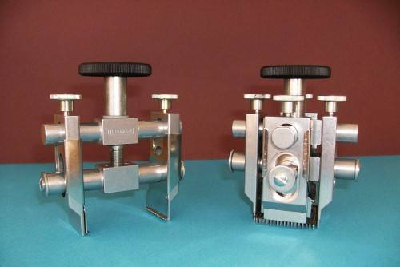

These tools provide a quick and safe way to extract PGA components from their sockets. Adjusting the extractors to match the Pin Grid Array dimensions is quick and easy. Available with 2 or 4 support legs, the claws gently remove the PGA from the socket as the operator turns the extraction screw. The surrounding components on a circuit board can be as close as .100" without interfering with the operation of the tool. The 4 leg extractor is made to pull PGAs of 16x16 to 22x22, lifting the component by supporting all four sides.
This model can also be used to extract Gate Arrays from their sockets. The two leg model can be used to extract components of 10x10 or greater. For large pin counts (>18x18) it is recommended to use the 4 leg version. Both devices have a lift stroke of 15 mm, easily allowing the removal of PGAs with heat exchangers mounted on them.
|
|
|
|
