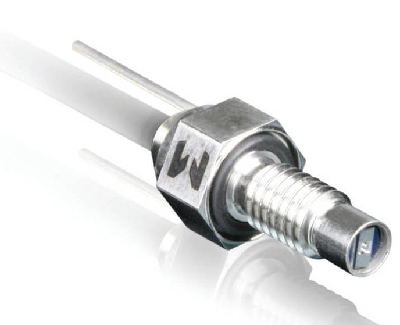

Piezoresistive Pressure Transducer provides dynamic measurements.
November 15, 2010 -
Offered in ranges of 15, 50, and 100 psig with 225 mV full scale output, EndevcoŽ Model 8510C features non-linearity of less than 1% to 3X over-range with 4X minimum burst pressure and 20,000 g shock resistance. Miniature unit includes 4-arm strain gage bridge ion implanted into silicon diaphragm. With integral hybrid temperature compensation, transducer provides stable performance over temperature range of 0-200°F. Device has 10-32 UNF-2A mounting thread and comes with 30 in. cable.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Meggitt Sensing Systems (Endevco Corp.)
30700 Rancho Viejo Rd.
San Juan Capistrano, CA, 92675
USA
Meggitt Sensing Systems Introduces EndevcoŽ High-Sensitivity Piezoresistive Dynamic Pressure Transducer
San Juan Capistrano, California, USA - Meggitt Sensing Systems, a Meggitt group division, has announced the global market introduction of the EndevcoŽ model 8510C, a rugged, miniature, high-sensitivity, high resonance gage piezoresistive pressure transducer, ideal for dynamic measurements.
Offered in ranges of 15, 50 and 100 psig with 225 mV full scale output, the EndevcoŽ model 8510C offers high output within a very small (3.86 mm diameter face) and lightweight (2.3 grams) package. The highly rugged model 8510C pressure transducer also features excellent non-linearity of <1% to three times over-range with 4X minimum burst pressure, 20,000 g shock resistance and high stability in temperature transients. Meggitt's EndevcoŽ pressure transducers feature a four-arm strain gage bridge ion implanted into a silicon diaphragm, designed for a wideband frequency response. Endevco's unique sculptured diaphragm produces twice the sensitivity than traditional flat diaphragms resulting in improved resolution Integral hybrid temperature compensation provides stable performance over a temperature range of -18°C to +93°C (0°F to +200°F). The EndevcoŽ model 8510C features a 10-32 UNF-2A mounting thread and comes standard with a 30-inch integral cable, with custom lengths available upon request. Models also come standard with a vent tube that can be connected to any standard reference manifold, used for differential pressure measurements, or referenced to the ambient atmosphere.
The EndevcoŽ model 8510C is designed for a wide variety of aerospace, automotive and industrial measurements which require a combination of small size, high sensitivity and broad frequency response. Typical applications include process control, blast testing, automotive airbag inflation testing, rocket motor analysis, jet engine inlet pressure measurements, vehicle transmission testing and hydraulics measurements. Recommended accessories include the model 136 three-channel DC signal conditioner, model 4430A bridge transducer signal conditioner or 4990A (Oasis) multi-channel signal conditioner. For more information about the EndevcoŽ model 8510C or other products available from Meggitt Sensing Systems, visit www.meggittsensingsystems.com.
About Meggitt Sensing Systems
Meggitt Sensing Systems, a Meggitt division (www.meggitt.com), is a leading supplier of high-performance sensing and monitoring systems for physical parameter measurements in extreme environments. It has operated since 1927 through its antecedents -ECET, Endevco, Ferroperm Piezoceramics, Lodge Ignition, Sensorex, Vibro-Meter and Wilcoxon Research -whose portfolios form the basis of product lines offered by today's Meggitt Sensing Systems. Meggitt's EndevcoŽ range of piezoelectric, piezoresistive, IsotronŽ and variable capacitance accelerometers, piezoresistive pressure transducers, acoustic sensors, electronic instruments and calibration systems ensure critical accuracy and reliability within aerospace, automotive, defense, industrial, medical, power generation, R&D, space and test and measurement applications. EndevcoŽ and IsotronŽ are registered trademarks of the Meggitt group.
|
|
|
|
|
|
|
|
