Pick and Place Unit suits mid- to high-volume SMT assembly.
July 18, 2008 -
Optimized for speed and flexibility, Hi Output Line features Cognex® flying vision-controlled MC683 conveyorized dual gantry system with 2 heads that pick as other 2 simultaneously place with repeatable accuracy of ±0.01 mm. Off-line loadable plug-and-play modular smart feeder trolley facilitates changeovers, while 10,500 cph placement speed promotes throughput. Automated, turnkey solution also includes automatic inline stencil printer, 8-zone reflow oven, and pass-through conveyor.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Manncorp
2845 Terwood Rd.
Willow Grove, PA, 19090
USA
Manncorp 'Hi Output' Turnkey Line Targets Mid to High-Volume Flexible SMT Assembly

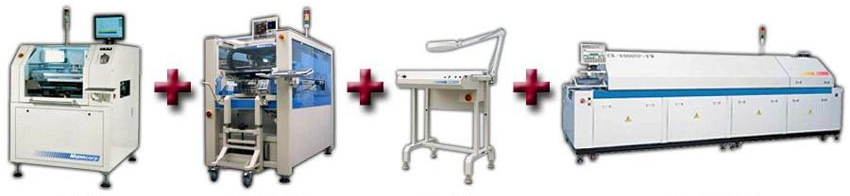

An automated turnkey line now offered by Manncorp includes a 4-head pick and place that provides assets of speed, flexibility and fast changeover. The "Hi Output Line" also includes an inline fully automatic stencil printer, an 8-zone reflow oven and pass-through conveyor, priced below $180,000 complete. According to CEO Henry Mann, "The 10,500 cph placement speed allows mid-volume assemblers to step-up throughput while benefitting from the increased savings and service advantages of purchasing the entire line from a single-source provider."
The pick and place features the Cognex® flying vision-controlled MC683 conveyorized dual gantry system with speed enhanced by two heads that pick as the other two simultaneously place with repeatable accuracy of ±0.01mm. Included is an off-line loadable "plug-and play" modular smart feeder trolley facilitating quick changeovers.
Every operational aspect of the line-balanced G300 fully automatic stencil printer is computer controlled. It includes dual motorized print heads and vision-controlled fiducial alignment, resulting in a registration accuracy of ±0.025mm. An automatic stencil cleaner is built-in. The CR8000 reflow oven ensures precise adherence to profiles with eight independent upper and lower heat zones and PID temperature control to 300ºC. Boards travel on an edge-pin conveyor adjustable to 450mm width (18"). The MC683 is coupled to the reflow by a pass-thru SMEMA-compatible inline conveyor with manual or auto bypass modes for inspection or mounting of special components. For details, manncorp.com/turnkey/index.php?auto=done
|
|
|
|
