Pick-and-Place System offers placement rate of 6,400 cph.
December 1, 2010 -

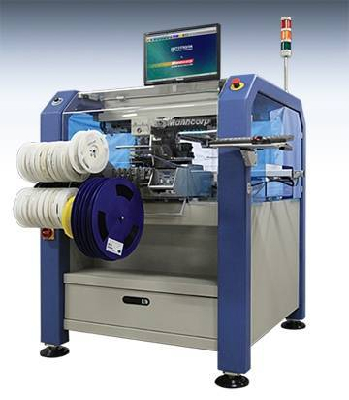

Suited for high-mix assembly applications, dual-head Model MC-392 features ball screw X-Y drive and closed-loop servo control with linear encoding for placement accuracy of 30 µm, 3 Sigma. Unit is available in in-line configuration with up to 96 feeders or as stand-alone unit with space for 160 feeders. Equipped with Cognex®-based vision system, Model MC-392 enables on-the-fly alignment of any SMD from 0.4 x 0.2 mm to 16 x 14 mm, including CSPs and µBGAs.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
2845 Terwood Rd.
Willow Grove, PA, 19090
Manncorp's 6,400 CPH Dual-Head MC-392 Pick-and-Place Features Ball Screw X-Y and 30µM, 3 Sigma Accuracy
Although all five models in Manncorp's latest-generation MC series pick-and-place systems have received industry acclaim, one system in particular has stood out for its extraordinary price/performance ratio, according to CEO Henry Mann.
The dual-head MC-392 placement rate of 6,400 cph and large feeder capacity allow the system to be called on for high-mix assembly applications - from product development to mid-level manufacturing. The machine's high-precision features include ball screw X-Y drive and closed-loop servo control with linear encoding for placement accuracy of 30µm, 3 Sigma. It is available either in an in-line configuration with up to 96 feeders or as a stand-alone unit with space for 160 feeders.
The 392's vision system is Cognex®-based for "on-the-fly" alignment of any SMD from 0.4mm x 0.2mm (01005 footprint) to 16mm x 14mm, including CSPs and µBGAs. Additional upward-looking vision cameras align components up to 150 x 100mm, including large BGAs and QFPs to 0.3.mm (0.012") lead pitch. A vision inspection capability allows a camera to selectively check solder paste printing and component placement accuracy.
"The features of this machine go on and on," reports Mr. Mann, "but the greatest asset of the MC-392 is its value. At $69,995, we frankly feel there's no other lead-screw pick-and-place that comes close - in price or performance!"
For details, access http://manncorp.com/pick-and-place/mc392 or call 800. PIK MANN (745.6266) or e-mail firstname.lastname@example.org. Manncorp offers pick-and-place machines, stencil printers, reflow ovens, rework systems, wave solder machines, solder pastes, board cleaners, desiccant cabinets, and more. Accessing manncorp.com is an informational experience. Not only are full details and specifications provided for the 150+ products, but prices are also attainable immediately after minimal contact information is provided.
