Pad Printing Machines feature horizontal pad thrust.
October 16, 2007 -
Able to accept multiple sizes of inkcups and cliches, servo-driven Model XE-07 and pneumatic-drive Model XP-07 are suited for horizontal in-line printing of parts that need to stand vertically, and can be modified to print from below onto bottom of parts being conveyed over printer. Pad stroke is variable to 8 in. and horizontally adjustable from 45-90°. Brushless servo motor operates at max speed of 2,500 cycles/hr on XE-07 and 1,000 cycles/hr on XP-07.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Pad Print Machinery of Vermont
201 Tennis Way
East Dorset, VT, 05253
USA

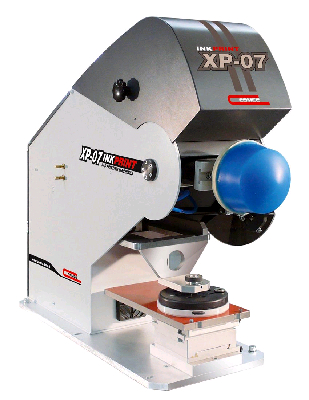

Flexible and Fast, XE/XP-07 Goes Horizontal
The latest in-line solution from Pad Print Machinery of Vermont features horizontal pad thrust, plus the flexibility to accept multiple sizes of inkcups and cliches.
The servo-driven XE-07 and its pneumatic pad-drive counterpart - the XP-07 - are the newest additions to the growing line of pad printing machines designed for automated manufacturing environments.
"Automation in secondary processes, such as product marking, is a growing trend in an increasingly competitive economy," said Pad Print Machinery of Vermont President Julian Joffe. "Engineering and automation solutions are proven ways to dramatically improve a manufacturer's bottom line."
The XE/XP-07 is ideal for horizontal in-line printing of parts that need to stand vertically, and can also be modified to print from below onto the bottom of parts being conveyed over the printer. Two XE/XP-07s can also be configured to print on opposite sides of bottles or other items simultaneously.
The XE/XP-07 pad printing machine is adjustable for use with multiple sizes of inkcups and cliches, plus features a horizontal pad stroke adjustable between 45 and 90 degrees. The machine has the option of being modified to print beyond 90 degrees by special order.
The standard Model XE/XP-07 is built to accept a 60mm, 90mm, 130mm or 160mm sealed inkcup with minimal modifications: simply replace the inkcup, adjust a lever, swap in a larger or smaller clichİ and print a 50mm to 150mm diameter image.
The pad stroke is variable to 8 inches and the high-speed brushless servo-motor can operate at a maximum speed of 2,500 cycles per hour on the XE-07 and 1,000 cycles per hour on the XP-07. The XE/XP-07 comes standard as a one-color, single pad machine, but can be modified for printing up to four colors, or with four pads printing a single color.
For more information about the XE/XP-07, and Pad Print Machinery of Vermont's other machines and pad printing consumables, go online to www.padprintmachinery.com, call toll free 800-272-8864 or e-mail sales@padprintmachinery.com.
|
