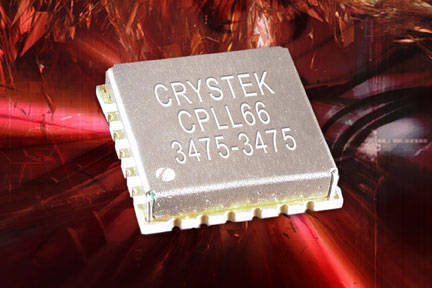

PLL/Synthesizer comes in 0.6 x 0.6 x 0.15 in. SMD package.
October 14, 2009 -
Operating at 3,475 MHz with typical step size of 2,500 kHz, CPLL66-3475-3475 features typical phase noise of -95 dBc/Hz at 10 kHz offset with minimum output power of 3 dBm. It is programmed using standard 3 line interface (data, clock and load enable) and features second harmonic suppression of -15 dBc typical. Integrating VCO and PLL in single package, unit needs only external frequency reference and supply voltages of 3 V for PLL and 5 Vdc for VCO.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Crystek Corporation
12730 Commonwealth Drive
Ft. Myers, FL, 33913
USA
New 3475 MHz PLL/Synthesizer from Crystek Corporation
Fort Myers, FL - October 1, 2009 - Crystek's CPLL66-3475-3475 PLL/Synthesizer operates at 3475 MHz with a typical Step Size of 2500 KHz. Engineered and manufactured in the USA, the model CPLL66-3475-3475 is housed in a compact 0.6-in. x 0.6-in. x 0.15-in. SMD package, which saves board space.
Crystek's PLL/Synthesizer construction essentially wraps a VCO around a PLL in a package that's only marginally larger than a VCO on its own, and significantly smaller than separate VCO/PLL modules. The CPLL66-3475-3475 is a complete PLL/Synthesizer needing only an external frequency reference and supply voltages for the internal PLL (phase lock loop) and VCO (voltage controlled oscillator). The Crystek CPLL66-3475-3475 is programmed using a standard three line interface (Data, Clock and Load Enable).
Typical phase noise for the CPLL66-3475-3475 is -95 dBc/Hz at 10 KHz offset with minimum output power of 3 dBm. VCO voltage is 5 Vdc; PLL voltage is 3 Vdc. Second harmonic suppression is -15 dBc typical.
The CPLL66-3475-3475 is ideal for use in telecommunications, computers, radio equipment, base stations and other electronic applications. For pricing details, contact Crystek Corporation.
