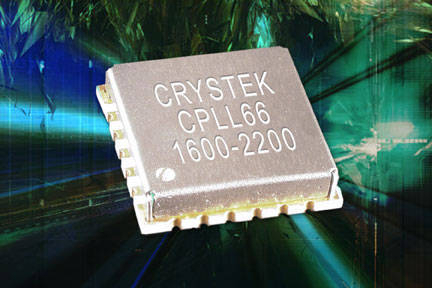

PLL Synthesizer comes in 0.6 x 0.6 x 0.15 in. SMD package.
July 21, 2009 -
Featuring VCO wrapped around PLL in single package, CPLL66-1600-2200 operates from 1,600-2,200 MHz with typical step size of 1,000 kHz. It requires only external frequency reference and supply voltages for internal PLL and VCO, and is programmed using standard 3 line interface. Features include typical phase noise of -6 dBc/Hz at 10 kHz offset with minimum output power of +7 dBm, second harmonic suppression of -15 dBc typical, and VCO and PLL voltages of 12 and 3 Vdc, respectively.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Crystek Corporation
12730 Commonwealth Drive
Ft. Myers, FL, 33913
USA
New 1600-2200 MHz PLL/Synthesizer from Crystek Corporation
Fort Myers, FL - July 9, 2009 - Crystek's CPLL66-1600-2200 PLL/Synthesizer operates from 1600 MHz to 2200 MHz with a typical Step Size of 1000 KHz. Engineered and manufactured in the USA, the model CPLL66-1600-2200 is housed in a compact 0.6-in. x 0.6-in. x 0.15-in. SMD package, which saves board space.
Crystek's PLL/Synthesizer construction essentially wraps a VCO around a PLL in a package that's only marginally larger than a VCO on its own, and significantly smaller than separate VCO/PLL modules. The CPLL66-1600-2200 is a complete PLL/Synthesizer needing only an external frequency reference and supply voltages for the internal PLL (phase lock loop) and VCO (voltage controlled oscillator). The Crystek CPLL66-1600-2200 is programmed using a standard three line interface (Data, Clock and Load Enable).
Typical phase noise for the CPLL66-1600-2200 is -96 dBc/Hz at 10 KHz offset with minimum outpout power of +7 dBm. VCO voltage is 12 Vdc; PLL voltage is 3 Vdc. Second harmonic suppression is -15 dBc typical.
The CPLL66-1600-2200 is ideal for use in telecommunications, computers, radio equipment, base stations and other electronic applications. For pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com.
Crystek Corporation® is a leading manufacturer of Frequency Control Products - quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), VCXOs (voltage controlled crystal oscillators), and TCVCXOs (temperature compensated voltage controlled oscillators). Founded in 1958, Crystek's capabilities include custom manufacturing of quartz crystal and oscillators from quartz bars through packaged and tested finished products. Crystek's facilities include climate controlled manufacturing plants and state-of-the-art product validation centers. Crystek's on-site warehousing facility boasts an inventory of more than five million items, which allows the company to respond to most customer requests on a next day basis.
