PIN Diode SPDT Switch supports military communications.
May 30, 2012 -

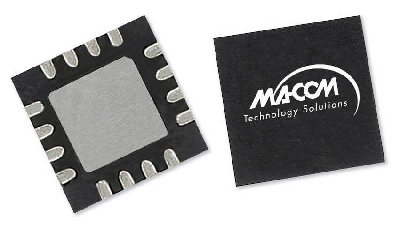

Housed in surface mount 4 mm 16-lead PQFN package, Model MASW-000936 features 50 dB isolation at 2.7 GHz and Tx RF input power handling of 120 W at 85°C. Insertion loss is 0.2 dB and Rx/Tx input return loss is 23/34 dB. Switch is suited for applications operating in 0.05-6.0 GHz frequency range, including LTE and WiMAX base stations, radar, land mobile, and 2-way radios.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
M/A-COM Technology Solutions, Inc.
100 Chelmsford Street
Lowell, MA, 01851
USA
M/A-COM Technology Solutions Announces New 120 Watt SPDT Switch for LTE Base Stations and Military Communications
Switch Delivers Low Insertion Loss, High Isolation, and Exceptional Broadband Performance
Lowell, MA, - M/A-COM Technology Solutions Inc. (M/A-COM Tech), a leading supplier of high performance analog semiconductor solutions, introduced today a new 120 Watt PIN Diode SPDT switch for network applications and military communications.
The T/R switch offers high isolation of 50 dB @ 2.7 GHz, low insertion loss, and high Tx RF input power handling of 120W at 85°C. Packaged in a surface mount 4mm 16-Lead PQFN, the MASW-000936 is a SPDT high power, high linearity PIN diode T/R switch. The switch is ideal for applications requiring small footprint operating between 0.05 - 6.0 GHz, including LTE and WiMAX base stations, radar, land mobile, and two-way radios.
The MASW-000936 incorporates PIN diodes, fabricated using M/A-COM Tech's low loss high isolation switching diode process.
"The MASW-000936 was designed with high power LTE base stations in mind where it can handle average transmit power levels over 100W. The switch offers high isolation needed for protecting the sensitive elements of the receiver." said Amer Droubi, Product Manager, Cellular Infrastructure. "This switch simplifies the system design, shrinks the PCB board area and reduces the bill of material cost by replacing multiple discrete pin diodes"
The table below outlines typical part number performance:
Parameters Units MASW-000936
Frequency GHz 0.05-6.0
Insertion Loss (ANT - Tx) dB 0.2
Isolation (ANT - Rx @ 2.7 GHz) dB 50
Input Return Loss (Rx/Tx) dB 23/34
Tx IIP3 dBm 72
Package 4mm 16-Lead PQFN
Production quantities and samples of MASW-000936 are available from stock. Final datasheets and additional product information can be obtained from the M/A-COM Tech website at: www.macomtech.com
