PICMG 1.3 System Host Board has VGA and dual GbE LAN ports.
June 5, 2009 -
In addition to leveraging Intel® 945GC desktop chipset, PCE-5020 supports Intel Core(TM)2 Duo, Pentium® Dual-Core, and Celeron® 400 processors with 1,066 MHz FSB and DDR2 667 MHz SDRAM up to 4 GB. Graphics Media Accelerator 950 graphics core with 224 MB shared memory is standard, and I/O includes four 300 GBps SATA II ports with RAID 0/1/5/10 and 4 COM ports. Suited for image- or data-intensive applications, SHB also offers one PCIe x16 and 4 PCIe x1 lanes to backplane.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Advantech Technologies, Inc.
15375 Barranca Parkway, Suite A-106
Irvine, CA, 92618
USA
Economy System Host Board LGA775 Intel® Core(TM) 2 Duo SHB with VGA/Dual GbE

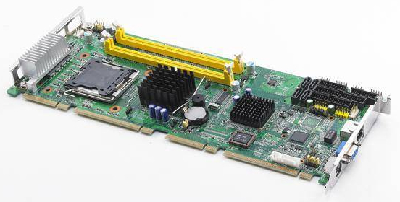

Irvine, California, May 29, 2009 - Advantech, the leading global ePlatform services provider, today announced its new PICMG 1.3 full-sized system host board (SHB) PCE-5020, which is a high value cost/performance (C/P) product that features mainstream Intel Core(TM)2 Duo dual-core computing power. It is an ideal solution for price-sensitive industrial applications requiring high-performance computing power and great expansion capability, such as automatic optical inspection (AOI), medical image processing, digital surveillance, and telecommunications.
Great Chips
PCE-5020 is designed with an Intel® 945GC desktop chipset and supports Core(TM)2 Duo, Pentium® Dual-Core, and Celeron® 400 processors with 1066 MHz FSB and DDR2 667 MHz SDRAM up to 4 GB. High computing power makes it suitable for today's industrial applications that need intense image or data processing. Besides great computing power, the PCE-5020 offers a high-performance, integrated Graphics Media Accelerator 950 graphics core with 224 MB shared memory. Advanced graphics capability makes it suitable for applications that require complex 3D/2D graphics display via a VGA port.
Great Connectivity
PCE-5020 is rich in I/O interfaces: it has four SATA 2 ports with RAID 0, 1, 5, and 10, providing high data transmission rates (300 MB/sec) and super-reliable read/write performance. The four serial ports (COM ports) can be used for device control applications. Dual Gigabit Ethernet LANs offer strong networking capability.
With one PCIe x16 and four PCIe x1 lanes going to the backplane, the PCE-5020 can be used with all Advantech PCE-5000 series backplanes and can utilize mainstream PCIe x16 graphics cards. With eighteen 5000 series backplanes, the PCI, PCI-X, and PCIe expansion options are both robust and numerous.
In addition to board-level products, Advantech also offers rack-mount and wall-mount chassis options; with PCE-5020 joining the product portfolio, Advantech now can provide more competitive general purpose, high value C/P system-level solutions.
Features:
Compliant with PICMG 1.3
Supports LGA 775 Intel® Core(TM)2 Duo processors with 1066 MHz FSB
Supports Dual Channel DDR2 667 MHz SDRAM up to 4 GB
One PCIe x16 and four PCIe x1 channels to backplane
Dual GbE LANs via PCIe x1 Lanes
Supports four SATA2 ports with S/W RAID 0, 1, 5, and 10
Supports up to four onboard COM ports
With outstanding performance and mainstream plugin capability, PCE-5020 is an ideal computing platform for modern industrial applications, especially where economy is important. For more information about the PCE-5020, or other industrial host boards, please visit www.advantech.com.
