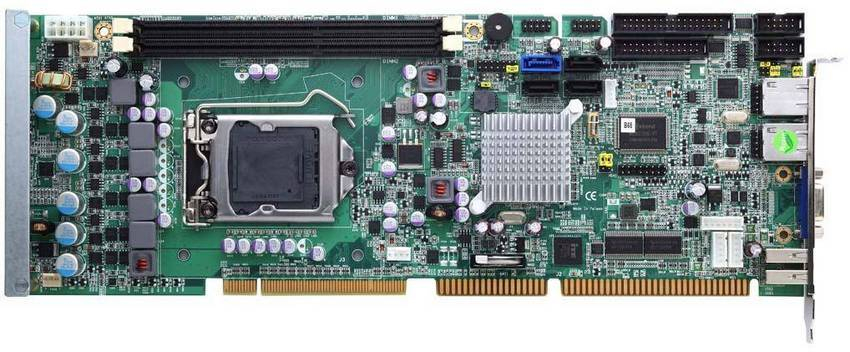

PICMG 1.0 Full-Size CPU Card offers diverse I/O options.
September 6, 2011 -
Model SBC81210 can be powered by 32 nm Intel® Core(TM) i7/i5/i3 mobile CPUs with Intel® B65 Express chipset and LGA1155 socket. Integrated CPU card features Intel HD technology and multiple displays via DisplayPort (optional) and VGA for 3D graphics performance, and system memory is provided via 2 DIMM slots that accommodates up to 8 GB DDR3 1066/1333. Interfaces include 3 Gbps SATA, 6 Gbps SATA, Gigabit Ethernet, 32-bit PCI bus masters, COM, USB 2.0, PS/2, printer, and floppy.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
AXIOMTEK
8F, No.4, Lane 235 Pao Chiao Rd.
Taipei, ,
Taiwan
LGA1155 Intel® Core(TM) i7/ i5/ i3 PICMG 1.0 Full-Size CPU Card with Intel® B65 Chipset, Intel® HD Technology, Dual Displays and Dual LANs - SBC81210
Taipei, Taiwan - Axiomtek announces the availability of a new PICMG 1.0 full-size slot CPU card, SBC81210. It offers broad scalability from latest 32nm Intel® Core(TM) i7/ i5/ i3 mobile processors with Intel® B65 Express chipset and LGA1155 socket. This highly integrated CPU card features Intel® HD technology and multiple displays via DisplayPort (optional) and VGA for advanced 3D graphics performance. Thus, SBC81210 delivers ultimate in graphics power and has better performance-per-watt. The system memory is provided via two DIMM slots that accommodates up to 8 GB DDR3 1066/1333. These features make it the ideal solution for a wide range of industrial and embedded applications including gaming, DSA, DVR, network computing, and more.
"Axiomtek SBC81210 provides high processing capability via Intel® Core(TM) i7/ i5/ i3 processors and deliver excellent 3D graphics capability," said Eric Chiang, Senior Product Manager of Product & Marketing Division at Axiomtek. "With its rich availability, the market players benefit from the advantages which SBC81210 brings to create exclusive high value offers for various embedded applications."
High Computing Capability
The new Intel® Core(TM) i7/ i5/ i3 processors provide extreme computing and high bandwidth with great energy efficiency. All three Intel® Core(TM) processors bring memory and graphics controllers onto the CPUs themselves and offer a Turbo Boost feature.
Enhanced Graphics Performance & Dual Displays
Equipped with Intel® HD Graphics chipset that can scale the clock speeds up on demand; this Intel® Core(TM) i-solution offers better graphics capability than previous Intel platforms. Plus, the dual displays are provided via interfaces of DisplayPort (optional) and VGA, making multimedia application outstanding.
Rich I/O and More Features
Storage interface includes 3 SATA ports with transfer rates up to 3Gb/s and 1 SATA port with transfer rates up to 6Gb/s. Optional RAID 0/1/10/5 functionality (only for Intel® Q67) is available for secured data storage and protection. Dual Gigabit Ethernet ports (with Intel® 82579LM & Intel® 82582V) give up to 10/100/1000Mbps of bandwidth for network-intensive applications. For expansion capability, the SBC81210 provides four 32-bit PCI bus masters interfaces. More I/O includes two COM (1 RS-232 & 1 RS-232/422/425), six USB 2.0, DisplayPort or VGA, PS/2 keyboard & mouse, printer and floppy ports. The high performance single board computer is fully compatible with Axiomtek's PICMG 1.0 full-size passive backplanes, and we offer various industrial housing enclosures and have the capability to assist with any customer's industrial integration needs.
The green yet industrial grade slot CPU card SBC81210 will be available in the beginning of October, 2011. For more product information, please visit our global Website www.axiomtek.com or contact our sales representative at info@axiomtek.com.tw.
Advanced Features
PICMG 1.0 full-size CPU card supports LGA1155 socket for Intel® Core(TM) i7/ i5/ i3 mobile processors
Intel® B65 Express chipset
2 DDR3 1066/1333 DIMM supports up to 8 GB memory capacity
Supports next generation Intel® HD Graphics
DisplayPort (optional), 6 USB 2.0, 2 COM and 2 Gigabit Ethernet ports
3 SATA ports with transfer rates up to 3Gb/s and 1 SATA port with transfer rates up to 6Gb/s
RAID 0/1/10/5 (optional and only for Intel® Q67)
