PCI Mezzanine Card offers 4 UART interfaces.
October 2, 2009 -
Qualified for extended temperature range of -40 to +85°C, P507 PMC features 4 software-configurable RS422/485 UART interfaces supporting full and half duplex operation. Each channel includes independent 500 V isolation enabling 32-bit/33 MHz P507 to supply data rates up to 921,600 bits/s. UART interfaces also provide 60 Byte transmit/receive buffer. Additional features include 32 MB soldered SDRAM DDR2 memory, 132 MHz memory bus frequency, and 2 MB FPGA-controlled non-volatile Flash memory.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Men Micro Inc.
P.O. Box 4160
Lago Vista, TX, 78645-4160
USA

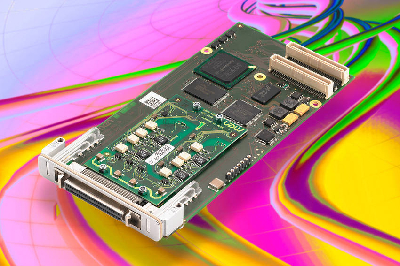

New P507 PMC with Four UART Interfaces Providing Fast Serial Data Transfer
AMBLER, Pa. September 2009 - MEN Micro Inc., a world-renowned provider of embedded computing and I/O solutions for mission-critical industrial, mobile and harsh environment applications, has released the new high performance P507 PMC that offers fast serial data transfer via four software-configurable RS422/485 UART interfaces supporting full (RS422) and half duplex (RS485) operation.
Each channel on the new PMC features an independent 500 V isolation enabling the 32 bit/33 MHz P507 to supply data rates of up to 921,600 bits/s. The UART interfaces also provide a 60-byte transmit/receive buffer. All ports are available on a shielded 50-pin D-sub front panel connector.
Qualified for an extended temperature range of -40°C to +85°C and prepared for coating against dust and humidity, the new P507 is especially useful in safety-critical and mobile applications. The P507 can be used on all PMC-compliant host carrier boards in any type of bus system independent of the application, such as CompactPCI, VME or on any stand-alone SBC in telecommunication, industrial, medical, transportation and aerospace applications.
The new PMC offers 32 MB of soldered SDRAM DDR2 memory and a 132 MHz memory bus frequency. 2 MB of FPGA-controlled non-volatile Flash memory is included for FPGA data and NIOS firmware.
As an expansion to MEN Micro's USM (Universal Submodule) concept, the P507 incorporates its FPGA on the main PMC, with line drivers implemented on a submodule-the USM-that simply plugs into the P507. The PMC's UART functionality is carried out inside the onboard FPGA, which is easily modified by employing new IP cores to meet customer's exact requirements.
Relative humidity for operation and storage is a maximum of 95% non-condensing. Fully soldered connections provide performance rated to withstand 15 g/11 ms for shock, 10 g/16 ms for bump and 1 g/10 Hz...150 Hz for vibration (sinusoidal).
The PMC can also be optionally equipped with its own intelligence via a Nios softcore. This provides long-term availability of at least 10 years to guarantee flexibility and reduce obsolescence in users' projects.
|
|
|
|
|
|
|
|
