PCB Terminals feature push-in, direction connection design.
September 14, 2005 -
Compliant with RoHS regulations, Series LSF-SMT features spring-action release button that opens clamp for inserting flexible wires. Solid core wires, once stripped of insulation, are inserted into terminal point until they hit stop. Equipped with 2 soldering pins, Liquid Crystal Polymer terminals feature fiberglass reinforcement, and are heat-resistant and halogen-free. They come in 3.5/3.81, 5.00/5.08, and 7.50/7.62 mm pitches, with 90, 180, and 135º wire entry angles.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Weidmuller, Inc.
821 Southlake Blvd.
Richmond, VA, 23236
USA
Reduce Wiring Time by up to 50% with the New Push-In Direct Connection PCB Terminals From Weidmuller
RICHMOND (September 2, 2005) - Weidmuller further expands their extensive portfolio of printed circuit board terminals with a family of push-in direct connection products. Designed to reduce wiring time by up to 50% compared with leaf-spring terminals, the LSF-SMT push-in direct connection terminals provide a safe and reliable connection for a wide range of applications, including SMT/THR (Through Hole Reflow), and are in full compliance with ROHS regulations.
These new terminals feature a spring-action release button in the direction of the wire connection that opens the clamp for inserting flexible wires. Solid core wires, once stripped of insulation, are simply inserted into the terminal point until it hits the stop - no tools are required to make the connection.
The LSF-SMT push-in direct connection system is based on the pressure spring principle; the spring for the wire connection is in a separate cage. This design reliably separates the mechanical and electrical functions, and provides greater wire retention. The pressure spring is protected by a stop that restricts spring excursion, while the cable entry design prevents incorrect insertion of the wire. The push-in direction connection technology ensures a reliable, vibration-resistant and gas-tight connection.
The LSF-SMT terminals are equipped with two soldering pins that provide a reliable connection to the printed circuit board. Users have a choice of 1.5mm or 3.5mm pin lengths. The contact and soldering zone surfaces of the pins are made from pure tin. For lead-free soldering applications, they comply with Class IV specification in accordance with DIN 45598: 260ºC - 280ºC for soldering alloys SnAg and SnCu.
In addition, the LSF-SMT push-in terminals are made from Liquid Crystal Polymer with fiberglass reinforcement, and are heat-resistant and halogen-free. This provides dimensional stability, making them ideal for use in reflow and wave soldering processes.

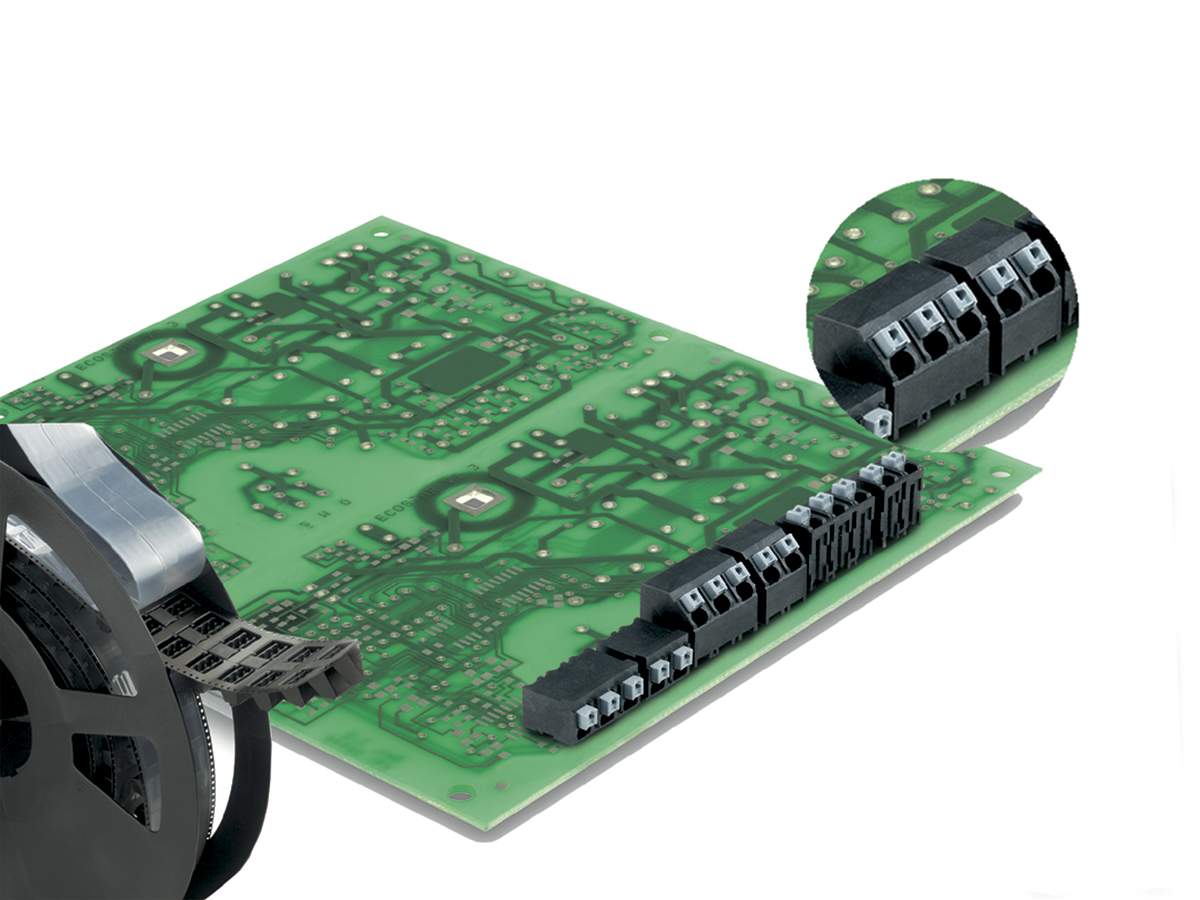

Weidmuller's new LSF-SMT terminals are available in 3.5/3.81, 5.00/5.08 and 7.50/7.62 mm pitches, with horizontal (90º), vertical (180º), and 135º wire entry angles. Poles range from 2 to 8 or 24 poles (3.5/3.81mm). They are available in tape-on-reel packaging for ease-of-use in SMT reflow soldering processes.
Weidmuller is a leading supplier of control and automation connectivity solutions such as reliable Ethernet solutions, power delivery solutions, design-build solutions, complete rail solutions, switching technology for control panels, printed circuit board terminals and connectors, and terminal blocks. Weidmuller has approximately 3,400 employees worldwide, with 70 sales organizations or offices in more than 60 countries.
|
|
|
|
|
|
|
|
