PCB-Mount AC/DC Switching Power Supply delivers 4 W output.
January 23, 2012 -
Operating from 85-264 Vac input at 47-440 Hz, PK4 Series comes in 1.44 x 1.06 x .67 in. plastic resin and fiberglass case that is encapsulated with thermally conductive potting compound and meets UL94V-0. Single-output models available include 3.3, 5, 9, 12, 15, and 24 Vdc, and dual-output models include +5/+3, +12/+5, ±12, and ±15 Vdc. Rated for 3,000 Vac isolation, all models feature output overvoltage protection and short circuit protection, are UL approved, and are RoHS compliant.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
1760 S. 151st St., W.
Goddard, KS, 67052

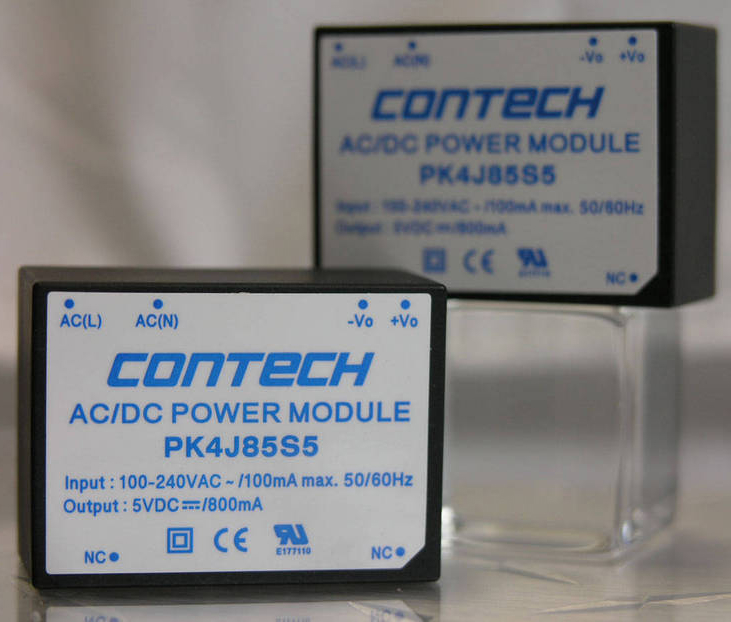

4 Watt PCB Mount Encapsulated AC/DC Power Supply
ConTech, a Division of Calex Mfg., announces the "PK4" Series of AC/DC switching power supplies.
The PK4 Series offers 4 Watts of output power in a 1.44 x 1.06 x .67 inch encapsulated case, making it well suited for small size PCB applications.
The PK4 series operates from a standard 85 to 264 VAC input, at 47 to 440 Hz. The single output models available are 3.3, 5, 9, 12, 15, & 24VDC. Dual output models are +5/+3, +12/+5, +/-12, & +/-15VDC.
Protective features used in this series are output overvoltage protection and short circuit protection. The units are encapsulated with a thermally conductive potting compound in a plastic resin and fi berglass case that meets UL94V-0. The PK4 series is rated for 3000 VAC isolation, is UL approved, and is RoHS compliant.
Pricing for the PK4 Series is priced as low as $12.10/ea. Units are available from stock to 6 weeks. To view a complete data sheet of the PK4 series go to http://www.ConTech-us.com/pdf/PK4.pdf To see our complete product line visit our website at www.ConTech-us.com. You may contact us at sales@ConTech-us.com or call Toll Free (877) 302-4411.
