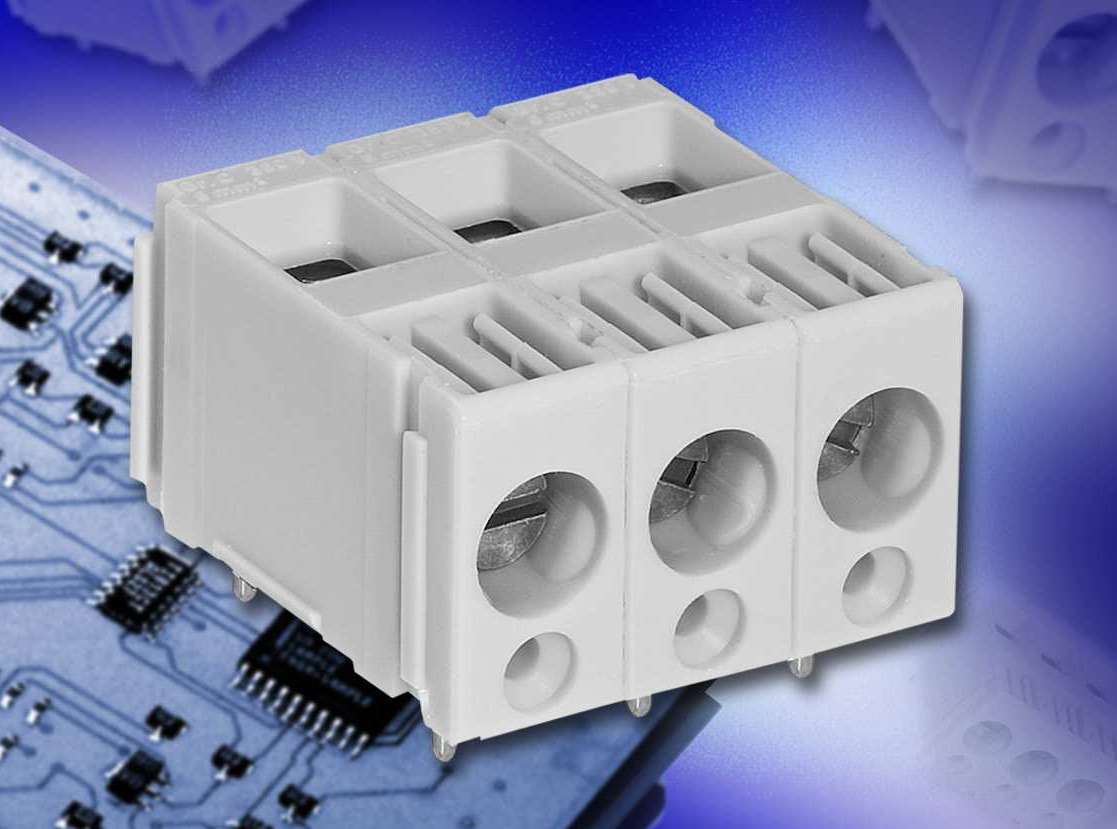

PCB Connector suits high-power applications.
November 15, 2002 - Series 7573 10.16 mm pitch, screw-clamp PCB connector enables vertical wire entry through 90° wire to screw driver access orientation. It is UL rated for up to 10 A, 300 V and VDE rated up to 59 A, 300 V for wire sizes 22–8 AWG. Block is offered in 1, 3, and 4 pole verions at 10.16 mm spacings, with 2 solder pins per pole. Each block has polyamide 6.6 plastic housing and individual marking tag facilities for identification.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Wieland Electric Inc.
49 International Rd.
Burgaw, NC, 28425
USA
Wieland Adds 10.16mm Direct Mount, Terminal Block to PCB Connector Family
BURGAW, N.C. (November 5, 2002) — Expanding its line of direct mount printed circuit board (PCB) terminal blocks, Wieland Electric Inc. has introduced a 10.16mm pitch, screw-clamp PCB connector for high power equipment and industrial applications. Designated the 7573 Series, the connector enables vertical wire entry through its 90ş wire to screw driver access orientation.
“The 7573 series, with its increased amperage capacity, is ideally suited for high power applications. The screw termination and wire vertical wire entry orientation also make for easy handling during installation.” said Wieland Product Group Manager, Bruce Burroughs.
Wieland’s 7573 Series is UL rated for up to 10A, 300V and VDE rated for up to 59A, 300V for wires sizes 22-8AWG. The blocks are available in 1, 3 and 4 pole versions at 10.16mm spacings, with two solder pins per pole. Because of its individual test points, which are directly connected to the current carrying bar, the series is ideal for continual process applications where signal monitoring is essential. Each block is manufactured of a durable polyamide 6.6 plastic housing and equipped with individual marking tag facilities for quick identification.
List Pricing for the 7573 Series connectors begin at $4.50 in quantities of 50. Product is available from stock.
Wieland Electric Inc. is a leading international manufacturer of wiecon PC board, selos, taris and fasis DIN rail terminal blocks, wire management products, revos (rectangular) connectors, electronic interface modules, wipos power supplies and ricos remote I/O communications systems. Based in Burgaw, N.C., Wieland operates manufacturing facilities worldwide and was the first terminal block supplier to achieve ISO 9001 and ISO 14001 certification. Along with nationwide sales and distribution networks in the U.S. and Canada, Wieland’s North American operation provides value-added assembly, warehousing, computerized inventory control, customer service and engineering support.
|
|
|
|
|
|
|
|
