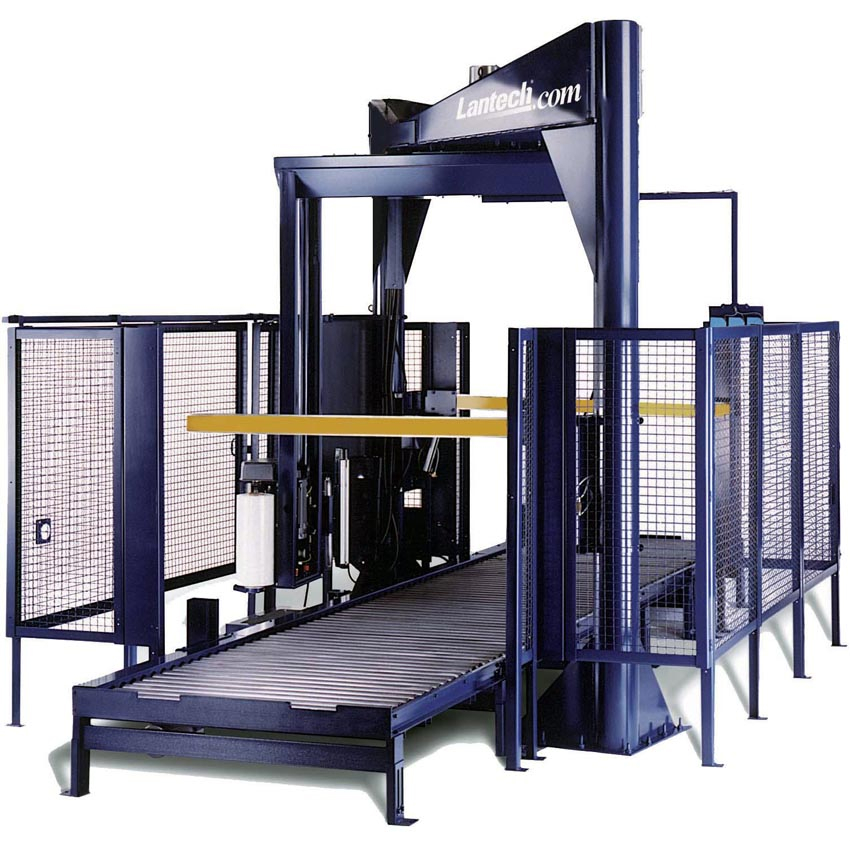

Overhead Stretch Wrapper has 80 pallet/hr capacity.
March 3, 2008 -
Designed for automated conveyorized operation, Model S-2500 can be used in-line, end-of-line, or freestanding to allow load accumulation. It handles loads up to 58 in. square x 80 in. tall, and provides automatic load indexing, film attachment, cutting, and wiping. Touchscreen control incorporates Lan-Logix interface for programming wrap parameters. Power Roller-Stretch® Plus film delivery system pre-stretches film up to 300%, while diagonally opposed 2-column chassis provides stability.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Lantech Inc.
11000 Bluegrass Pkwy.
Louisville, KY, 40299-2316
USA
New Conveyorized Overhead Stretch Wrapper Designed for Fork Truck Loading or Fully Automated Integration, with Capacity to 80 Pallet Loads Per Hour
Straddle design is ideal for unstable or extremely heavy loads. Touch screen control allows easy reprogramming of wrap patterns, timers, etc., without computer or special software.
February 2008 - Lantech's S-2500 overhead stretch wrapper combines operational lexibility with 80-pallet-per-hour capacity in processing unstable or heavy loads frequently found in paper goods or beverage industry plants. Demonstrated at Lantech's Interpack stand D47/E48 in Hall 13, the S-2500 is designed for automated, conveyorized operation. It can be used in-line, end-of-line or freestanding (fork-truck loaded) to allow load accumulation. The machine's patented Power Roller-Stretch® Plus film delivery system pre-stretches film up to 300 percent for economical operation. With a diagonally opposed two-column chassis, the S-2500 is both stable and quick to install, using modular shipping techniques and accessible lag-down points.
The S-2500 handles loads up to 58" (1.5 m) square and 80" (1.9 m) tall, providing automatic load indexing, film attachment, cutting and wiping. The machine can be extensively customized with over 100 off-the-shelf options, such as a top-sheet dispenser or the patented Pallet-Grip® load locking system.
The machine's operator-friendly touch screen control, with Lan-Logix interface, allows easy reprogramming of key wrap parameters, while ensuring electronically precise wrap force and performance over the life of the machine. Lan-Logix increases productivity by eliminating the need for costly software and hardware to make minor program changes. It includes multiple wrap patterns, precise wrap pattern control, password protection and extensive efficiency-data capture. It also provides audible alarms and indicators for low film and a wide range of other faults, and allows easy integration with plant-wide control systems.
Standard safety features include personnel barriers and fencing with interlocked sliding gate to deter accidental entry into the wrap zone during operation. Photocells automatically monitor the wrap zone for proper load squencing throughout the process. Reloading of the film delivery system is easily accomplished from floor level, protecting the operator from bending, twisting and reaching motions or standing on the conveyor.
Lantech's packaging and productivity solutions include semiautomatic and automatic stretch wrapping; automatic case handling; shrink packaging; and pallet-load conveying systems. Lantech is the originator of stretch wrapping technology and world's largest manufacturer, with 60,000 systems placed around the world and 175 U.S. and foreign patents. Headquartered in Louisville, Kentucky, with manufacturing operations in the U.S. and Europe, Lantech products are sold and serviced by a worldwide network of 175 distributor locations. Visit www.lantech.com for more.
