Optocouplers provide off-line control of ac voltages up to 380 V.
December 22, 2006 -

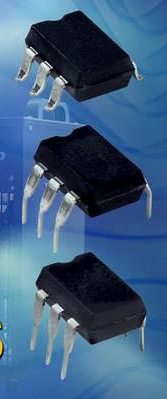

Non-zero-crossing 1.5 kV/µs dv/dt phototriac optocouplers consist of GaAs infrared LED optically coupled to monolithic photosensitive zero-crossing triac detector chip. Rated with 600 V blocking voltage, units provide isolation between dc and ac voltages on 120 and 240 Vac lines. Model VO3053 requires maximum trigger current of 5 mA to latch output, and VO3052 requires maximum current of 10 mA. Devices are offered in 6-pin DIP package.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Vishay Intertechnology, Inc.
63 Lincoln Hwy., P.O. Box 4004
Malvern, PA, 19355 2143
USA
Vishays New Non-Zero-Crossing 1.5-kV/µs dV/dt Phototriac Optocouplers Provide Off-Line Control of AC Voltages up to 380 V
MALVERN, PENNSYLVANIA December 20, 2006 Vishay Intertechnology, Inc. (NYSE: VSH) today announced the VO3052 and VO3053, two new non-zero-crossing 1.5-kV/µs dV/dt phototriac optocouplers designed to isolate low-voltage logic from AC voltages up to 380 V.
The phototriacs consist of a GaAs infrared LED that is optically coupled to a monolithic photosensitive zero-crossing triac detector chip. A low-input trigger current facilitates an easy interface with microcontrollers and digital logic. The VO3053 requires a maximum trigger current of 5 mA to latch output, while the VO3052 requires a maximum trigger current of 10 mA. The devices are offered in the 6-pin DIP package.
Rated with a 600-V blocking voltage, the phototriacs can provide isolation between DC and AC voltages on 120-V and 240-V AC lines, giving designers a 2X or better safety factor for control of off-line voltages up to 240 V.
The VO3052 and VO3053 are designed for control of resistive, inductive, or capacitive loads, including motors, solenoids, high-current thyristors, and relays. Optimized for noisy environments, typical applications for the new devices include refrigerators, air conditioners (HVAC), dishwashers, vending machines, industrial controls, AC motor drives, switches, switching power supplies, and solenoid/valve controls.
The VO3052 and VO3053, in which the new "VO" part number prefix indicates "Vishay optocoupler," are direct replacements for industry-standard 1.0-kV/µs dV/dt phototriacs and companion devices to Vishays zero-crossing VO3062 and VO3063 1.5-kV/µs dV/dt phototriacs.
Samples and production quantities of the new phototriacs are available now, with lead times of six to eight weeks for larger orders. Pricing for U.S. delivery in 10,000-piece quantities ranges from $0.50 to $0.61 per piece depending on the blocking voltage and trigger current values.
