Optical Inspection System tests fluorescing conformal coatings.
July 7, 2010 -

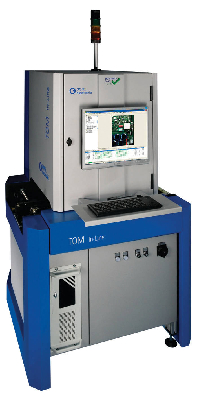

Designed for inspection of PCBs measuring up to 460 x 400 mm, TOM Teachable Optical Measurement System features modular design that can be adjusted to specific test requirements. Standard camera configurations extend from 1 to multiple cameras ranging from 1-5 megapixels and in color or black/white variants. Software offers range of optical test functions, including algorithms for component presence, solder joint and shorts inspection, color recognition, and OCR.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
GOEPEL electronics LLC
9600 Great Hills Trail, Suite 150 W
Austin, TX, 78759
USA
New Optical Inspection System for Automated Conformal Coat Inspection
GOEPEL electronic offers a system for the automated optical inspection of fluorescing conformal coating. The TOM system (Teachable Optical Measurement) can be utilised for inspection of PCB coatings as well as PCB areas, which mustn't be coated. The maximum PCB size is 460 X 400 mm.
Because of its modular design, the system can be adjusted to specific test requirements. The range of possible standard camera configurations extends from one to multiple camera configurations (1 Megapixel to 5 Megapixel), as colour or black/white variant. Various illuminations for the visible and UV ranges (conformal coating) are available.
The easy-to-use TOM Line system software enables an efficient and comfortable test program generation without prior programming knowledge. The range of optical test functions includes powerful algorithms for component presence, solder joint and shorts inspection, colour recognition as well as OCR.
The integration of camera, illumination and software into customised system is also possible.
About GOEPEL electronic:
GOEPEL electronic is a worldwide leading vendor of professional Automated Inspection (AOI/AXI) and JTAG/Boundary Scan solutions as well as technology innovator of IP based instrumentation. A network of branch offices, distributors and service partners ensures the global availability of the Company's products as well as the support of the more than 7,500 system installations worldwide. Founded 1991 and headquartered in Jena, Germany, GOEPEL electronic employs currently about 160 employees and generated a revenue of 17.9 Million Euro in 2009. GOEPEL electronic has continuously been ISO9001 certified since 1996 and has been honoured with TOP-JOB and TOP-100 awards for being one of the best medium-sized companies in Germany. GOEPEL electronic's products won several awards in recent years and are used by the leading companies in telecommunication, automotive, space and avionics, industrial controls, medical technology, and other industries. Further information about the company and its products can be found on the internet at www.goepel.com.
|
|
|
|
|
|
|
|
