Oil Skimmer offers variable collection rate.

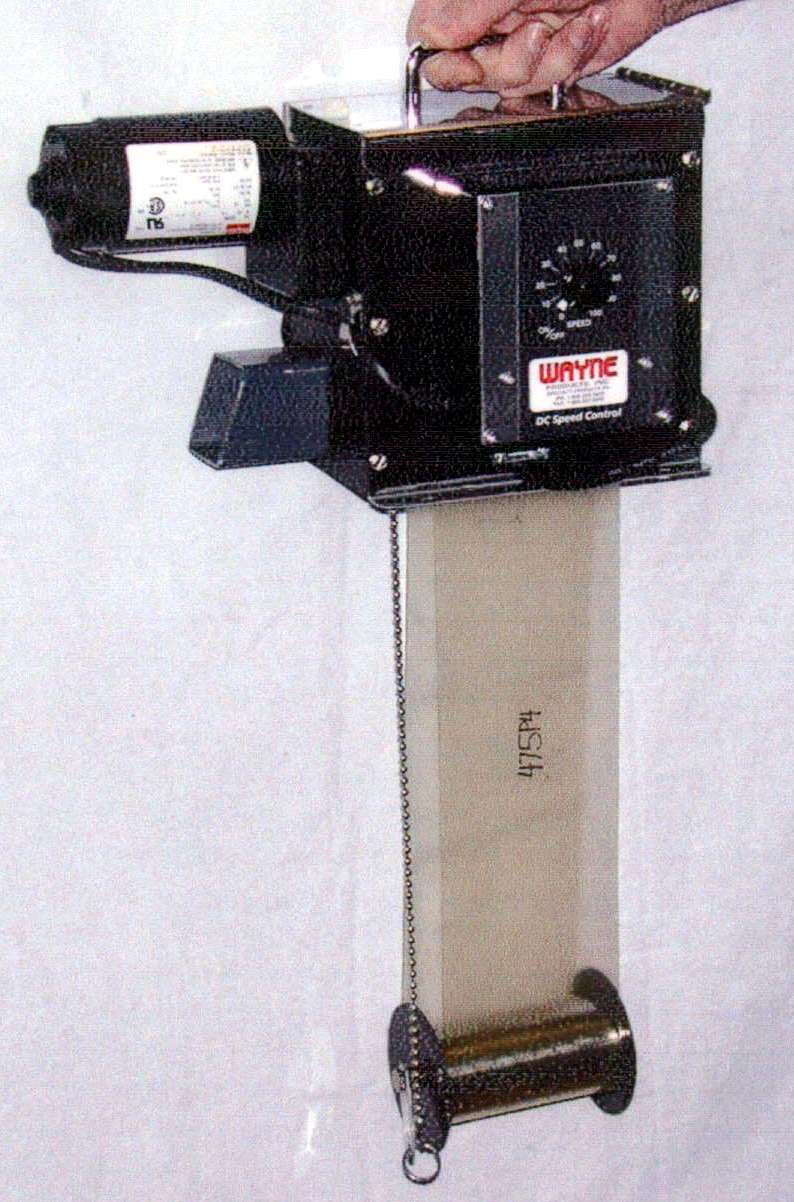

September 16, 2003 - Corrosion-proof MAXI-Skimmer™ Model SSV/5 is made of stainless steel, nylon, and UHMW bearing-grade polymer. With frame that measures 6 x 8 x 12 in., machine uses 1–4 in. wide polyurethane or stainless steel belt that can reach from 1–50 ft. down. Oil collection rate, from near 0 to 20 gph, is adjusted by rotating knob on control panel. Incoming 115 V power is converted to drive unit's 90 Vdc gearmotor.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Wayne Products Inc.
P.O. Box 788
Frazer, PA, 19355
USA
New Product - Adjustable Rate Oil Skimmer!
Wayne Products Inc., announces a new product - the MAXI-Skimmerâ„¢ Model SSV/5 Variable Collection Rate Oil Skimmer - the only one available! Included accessories are a timer for automatic control, a ground fault interrupter for electrical safety, a three foot hose for the oil outlet and a handle for portability. Cost is extremely competitive to other belt skimmers on the market!
Model SSV/5 is designed for wastewater needs, monitoring wells and large metalworking coolant tanks & partswashers. The standard design uses a 4" wide polyurethane or stainless steel belt that can reach from 1 - 50 ft. down. 1", 2" or 3" belts are available. Custom units can be made for OEM needs.
The oil collection rate is adjusted by rotating a small knob on the control panel. It can adjust from near 0 to 20 gallons per hour (per lab tests). Most useful for applications where the oil removal rate is not known, or varies from time to time or there may be a need to remove it faster or slower. Model SSV/5 is also totally corrosion-proof (motor excepted) being made of stainless steel, nylon and UHMW bearing-grade polymer. Incoming 115v power is converted to drive the 90vdc gearmotor. The frame measures only 6" wide x 8" high x 12" long (with motor). Shipping weight is approx. 15 lbs. Optional accessories include a stand for discharge into a 55 gal. collection drum and a gravity-type oil/water separator to provide 100% oil.
Information on Model SSV/5 and the complete line of Mini & MAXI-Skimmersâ„¢ is available from Wayne Products Inc. by calling 1 800 255-5665, faxing 1 800 252-0948 or 610 251-0218, or by email at wayneproductsinc2@worldnet.att.net.
|
|
|
|
|
|
|
|
|
|
|
