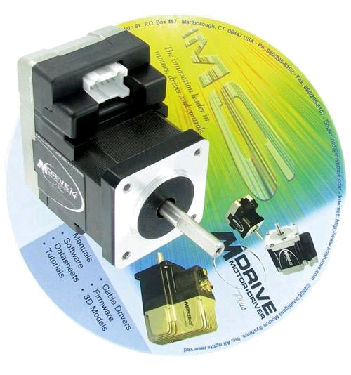

Motion Control uses NEMA Size 14 brushless 1.8° motor.
October 24, 2007 -
Measuring 1.9 x 1.4 x 2.0 in., MDrive14Plus combines motor, driver, controller, and encoder for integrated motion control. It includes up to eight 5-24 V general-purpose I/O lines, one 10-bit analog input, 0-5 MHz step clock rate, and 20 microstep resolutions up to 51,200 steps/revolution. Accepting input voltage from 12-48 Vdc, control has oversized input capacitors to minimize power line surges. Communications are over RS-422/485 or optional CANopen.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Intelligent Motion Systems, Inc.
370 N. Main St.
Marlborough, CT, 06447-1334
USA
New Small Size Delivers All-in-One Full Featured Integrated Motion Control
The MDrivePlus product line, with its proven leading technology combining motor, driver, controller and encoder, adds its smallest integrated all-in-one motion control solution to date with the new MDrive14Plus Motion Control utilizing a NEMA size 14 brushless 1.8° motor and measuring a mere 1.9" x 1.4" x 2.0" (48x36x52mm). Complete details at http://www.imshome.com/mdrive14plus_mdi.html
The MDrive14Plus Motion Control can reduce size, cost and complexity in a wide range of brushless motor applications without compromising functionality, and is an ideal compact solution where space is limited. This intelligent product includes a programmable controller and full featured easy-to-program instruction set. Communications is over either RS-422/485 or optional CANopen.
MDrive14Plus Motion Control includes up to eight +5 to +24 volt general purpose I/O lines, one 10 bit analog input, 0 to 5MHz step clock rate, and 20 microstep resolutions up to 51,200 steps per revolution. Optional closed loop control adds: stall detection, position maintenance and find index mark.
The MDrive14Plus Motion Control accepts a broad input voltage range from +12 to +48 VDC, delivering enhanced performance and speed. Oversized input capacitors are used to minimize power line surges, reducing problems that can occur with long runs and multiple drive systems. An extended operating range of -40° to +85°C provides long life, trouble free service in demanding environments.
Unsurpassed smoothness and performance is achieved through advanced 2nd generation current control. By applying innovative techniques to control current flow through the motor, resonance is significantly dampened over the entire speed range and audible noise reduced.
For more information contact Intelligent Motion Systems, Inc.
Phone: (860) 295-6102 Fax: (860) 295-6107
Home Page: www.imshome.com E-mail: info@imshome.com
|
|
|
|
|
|
|
|
