Moisture Analyzer Probe suits natural gas applications.
January 11, 2011 -
Able to be installed on ½ in. or larger ball valve, PRBa directly inserts into live pressurized pipeline and negates need to shut down pipeline when inserting/removing for service. NIST-calibrated device will not exhaust gas while making measurement, and 12 in. travel allows for insertion into larger diameter pipelines. Transmitter reports measurement in user-selectable measurements, including pounds of water per million standard cubic feet (lbs/MMscf) from 0-1,100 lb/MMscf.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Phymetrix Inc
28 C Industrial blvd
Medford, NY, 11763
USA
Phymetrix Introduces the First and Only Insertion Probe for Moisture Measurement in Natural Gas

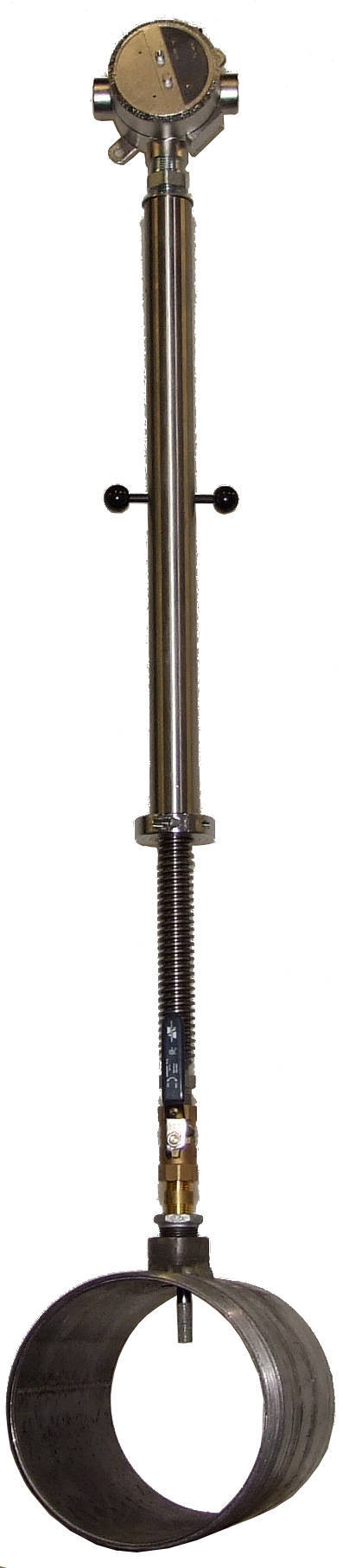

The Phymetrix PRBa is the first and only moisture analyzer probe designed to directly insert into a "live" pressurized pipeline, thus avoiding the need to shut down the pipeline when inserting or removing for re-calibration or pipeline service.
The Phymetrix PRBa has an all stainless steel construction, is small enough to be installed on a ½" or larger Ball Valve, seals with ¼" Swagelok tube fittings and has a 12" travel for insertion even into the largest diameter pipelines.
The Phymetrix PRBa meets the new environmental requirements of not exhausting gas while making a measurement at a lower cost than an extractive sample system.
The transmitter can report the measurement directly in pounds of water per million standard cubic feet (Lbs/MMSCF), with a range from 0 - 1100 Lbs/MMSCF. Other moisture measurement units (see below) are also user selectable.
In-situ measurement without exhausting any of the sample gas
Insertion into pressurized pipelines through ½" or larger ball valve
12" travel accommodating even the largest diameter pipelines
Weatherproof Installation On-The-Pipe
Seals with ¼" Swagelok tube fittings
Complete Cost Effective On-Line System
-110°C to +20°C dewpoint Sensor
Fast, Accurate and Repeatable
Smaller, Lighter and more Cost Effective than competitive sampling systems
Built-in temperature compensation
Manual entry of known pipeline pressure for compensation
Optional built-in Pressure Sensor for automatic compensation
Loop Powered (2-wire) 4/20 mA with HART
Wide loop voltage range 5VDC to 28VDC
State-of-the-art electronics & software
Units of measure °C & °F dewpoint, ppmV, ppmW, µB H2O vapor pressure, grams of H2O/m3, LbsH2O/106 standard cubic feet (LBS/MMSCF) in Natural Gas
Optional digital I/O for controlling relays
Built-in self-test and diagnostics
316 Stainless Steel & PTFE wetted parts
Stainless Steel Explosion-proof IP68 housing
Interfaces to a variety of panel meters DD4 and DD5
NIST calibrated
