Modular Panel PCs feature 3rd Gen IntelŪ Core(TM) processor.
March 8, 2013 -
Configured with IntelŪ Core™ i3-2340UE processor, Models IPP17A9-RE and IPPC19A9-RE provide 17 and 19 in. display panels, respectively, with 1,280 x 1,024 resolution,16.7 M colors, and viewing angle of 170°. IP65-rated units are equipped with 4 GB DDR3-1333 SO-DIMM RAM, 2M battery backup SRAM, and 320 GB hard disk drive. To optimize environmental performance, systems support iSMART technology with EuP/ErP power saving, auto power on/off scheduler, and power resume functions.
Original Press release
IBASE Technology Inc.
11F, No. 3-1, Yuan Qu St., Nankang
Taipei, ,
Taiwan

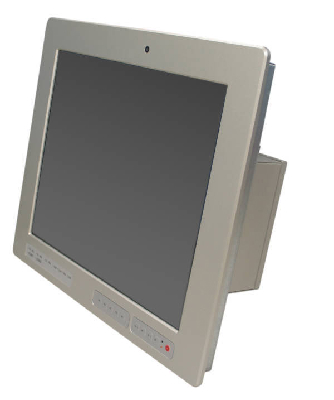

IBASE Releases Modular Panel PCs IPP17A9-RE and IPPC19A9-RE with 3rd Generation IntelŪ Core(TM) Processors
Taipei, Taiwan, – IBASE Technology Inc. (TASDAQ: 8050), a world-leading manufacturer of industrial motherboards and embedded systems, releases modular panel PCs IPP17A9-RE and IPPC19A9-RE that powered by 3rd Generation IntelŪ Core™ Processors based on the 22nm manufacturing process, also known as Ivy Bridge. These latest panel PCs fits into a wide range of applications such as medical, hospitality, retail, transportation and factory automation.
The modular IPP17A9-RE and IPPC19A9-RE utilizes a module that houses the system platform with a 17-inch and 19-inch display panel respectively. This standardized combination allows easy construction and affords better inventory control.
The IPP17A9-RE and IPPC19A9-RE are mainly configured with an IntelŪ Core™ i3-2340UE Processor with 4GB of DDR3-1333 SO-DIMM RAM, a 320GB hard disk drive and DC-input capable of operating over a 12V~24V wide range voltage. The systems support a resolution of 1280x1024 in 16.7M colors and a viewing angle of 170 degrees. It also supports iSMART, IBASE’s green technology with EuP/ErP power saving, auto power on/off scheduler and power resume functions, to improve the environmental performance.
The IP65-rated panels PCs offer a front keypad for OS adjustment and function keys. At the bottom of the chassis are interface connectors for two Gigabit LAN, four USB (2x USB3.0 and 2x USB2.0) , two RS-232/422/485 serial ports, one three-pins power terminal block, DVI-I, speaker and microphone jacks, and a 10-pins digital I/O. Two PCI slots and a 2.5-inch HDD drive bay are also available.
IPPC17A9-RE/IPPC19A9-RE FEATURES:
• Supports 3rd Generation IntelŪ Core™ Processors
• DDR3-1333 memory support up to 4GB
• 2M battery backup SRAM
• iSMART – for EuP/ErP power saving, auto-scheduler and power resume
• 12V~24V wide-range DC-in power input
• Auto brightness adjustment w/ front dimming sensor
• Front keypads for OSD adjustment and function keys
• IP65 front panel protection
• 5-wire resistive touch panel
• 2x PCI expansion slot
