Modular Contacts are available with crimp termination.
January 11, 2013 -
Plug-compatible with existing variants that feature axial screw termination, Han® HC Modular 650 Contacts promote design flexibility. Contacts are fixed in plastic insert, creating one-pole high-current contact. This can be inserted into existing frames, allowing various interfaces with 1–4 contacts to be created in connection with Han HPR housing series. Rated to 650 A/4,000 V, products offer 70, 95, 120, 150, 185, and 240 mm² cable cross sections.
Original Press release
Harting KGaA
Marienwerder Straße 3
, , -
Germany

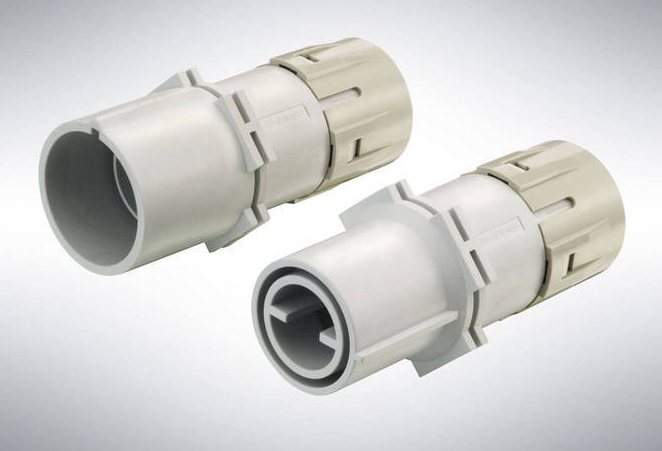

Han® HC Modular 650: Now Also with Crimp Termination
HARTING has now equipped its established Han® HC Modular 650 Contacts with crimp termination. These are plug-compatible with existing variants with axial screw termination and create even greater design flexibility for customer applications.
The contacts are fixed in a plastic insert, which creates a one-pole high-current contact. This can be inserted into the existing frames, which means that various interfaces with between 1 and 4 contacts can be created in connection with the Han® HPR housing series. The crimping tools to create the termination between the new Han® HC Modular 650 Crimp Contacts and the appropriate cable cross sections are of course included in the HARTING product portfolio.
High-current contacts are used predominantly in the railway industry. By introducing the new crimp variants, HARTING is responding to requests for alternatives to axial screw termination technology. Assemblies of large cable cross sections can now be produced in ideal configurations using either crimp or field-assembled axial screw technology.
Technical details:
• Cable cross sections 70, 95, 120, 150, 185 und 240 mm2
• Crimping zone designed for crimp geometry according to DIN 46 235
• 650 A / 4000 V
