Miniature Reed Relay comes in 5 and 12 V coils.
February 14, 2005 - Measuring .600 x .150 x .350 in., SIP Model 9092 features 2 Form A switching capability. Six-pin layout on 0.1 in. pitch grid provides electrical connections, while external magnetic shield minimizes interaction of relays mounted in close proximity. Featuring molded thermoset body, Model 9092 utilizes 10 W switch technology making it suited for ATE applications as well as test, measurement, and telecommunications applications where high board density is required.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
55 DuPont Dr.
Providence, RI, 02907 3105

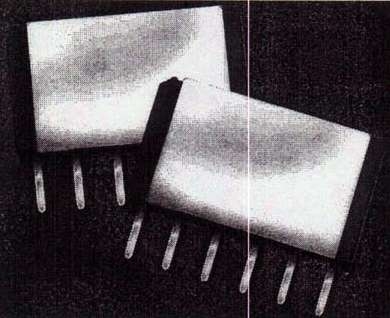

Coto Develops a Dual-Switch, Miniature SIP Reed Relay
Goto Technology has introduced the 9092 Miniature SIP reed relay - a taller version of its popular 9091 miniature SIP reed relay. The 9092 (which measures .600"x.l50"x.350") provides designers a small SIP relay with 2 Form A switching capability in a package with the same footprint as the standard 9091. Raising the height of the relay allows for the additional switch, while a 6 pin layout on a 0.1" pitch grid provides electrical connections. A standard external magnetic shield reduces interaction of relays that may be mounted in close proximity; high dielectric strength materials and molded thermoset body provide a robust design.
The 9092 utilizes Colo's 10W switch technology, making these SIP relays ideal for use in ATE applications and other high reliability test, measurement and telecommunications applications where high board density and long life are key requirements.
The 9092 Miniature SIP relay is available in 5V and 12V coils with an optional diode and sells in 1000 pc qty for as low as $4.50ea. (5V version; no diode). Delivery is from Stock to 6 weeks ARO. For more information, visit www.cotorelay.com.
