Miniature Linear Variable Displacement Transducer has rugged design.
Press Release Summary:

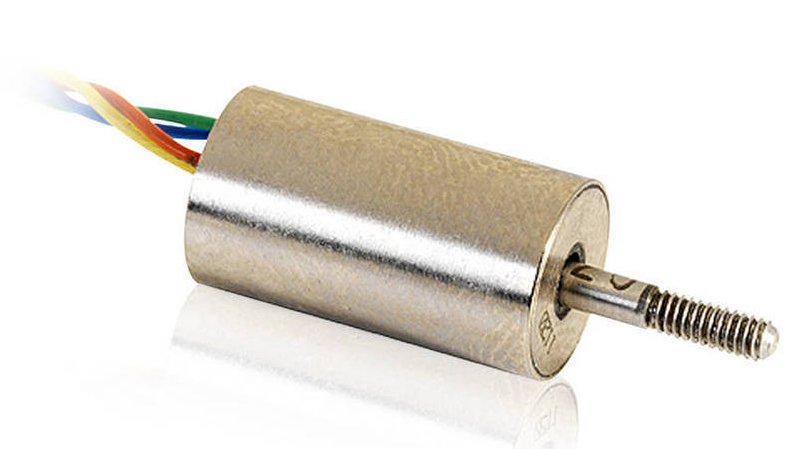

Sensorex model SX9W3 is rugged, high-accuracy transducer with overall length of 26 mm and diameter of 9 mm. Featuring maximum linearity error of less than ±0.25% of full scale, with option to reduce to ±0.15%, unit operates in temperatures from -40 to +125°C. There are no wearable parts and unit offers infinite resolution, resistance to shock and vibration, and immunity to external magnetic fields. Transducer suits embedded automotive and general laboratory test bench applications.
Original Press Release:
Meggitt Sensing Systems Introduces Sensorex Miniature LDVT's for Embedded Automotive and Laboratory Test Bench Applications
San Juan Capistrano, California, USA - Meggitt Sensing Systems, a Meggitt group division, has announced the North American market debut of the Sensorex model SX9W3, a rugged, high-accuracy miniature linear variable displacement transducer (LDVT), designed for high-precision displacement measurements within a variety of embedded automotive and general laboratory test bench applications.
With an overall length of just 26 mm (with body and core at null position) and a 9 mm diameter, the SX9W3 offers a maximum linearity error of less than ±0.25% of full scale, with option to further reduce to ±0.15% of full scale. The transducers are designed to reliably operate over an operating temperature range of -40°C to +125°C (-40°F to +257°F) and are environmentally sealed to IP65. Meggitt's Sensorex LVDT's have no wearable parts for friction-free operation, while offering infinite resolution, long service life and high measurement repeatability. Units are highly resistant to shock and vibration, impervious to external magnetic fields and are designed to be compatible for use with all industry standard LVDT signal conditioners. The low mass of the Sensorex model SX9W3 core LVDT assembly makes the transducer ideal for use in applications where high-reliability displacement measurements are required, though where mass, weight and space constraints may be of concern.
Recommended accessories for the Sensorex model SX9W3 include the model SX3120 DIN rail signal conditioner for industrial applications, as well use of an MCHP conditioner for integration with electronic boards. In addition, a spare core assembly, mounting flange, and custom calibration and core assemblies are available upon request. All Sensorex model SX9W3 miniature LVDT's are accompanied by a two-year comprehensive product warranty and are available thru both Meggitt's San Juan Capistrano, California, USA and Archamps, France-based facilities. For detailed technical specifications, drawings or additional information about the Sensorex SX9W3 or other products available from Meggitt Sensing Systems, visit www.meggittsensingsystems.com.
About Meggitt Sensing Systems
Meggitt Sensing Systems, a Meggitt group division (www.meggitt.com), is a leading supplier of high-performance sensing and monitoring systems for physical parameter measurements in extreme environments. It has operated since 1927 through its antecedents-ECET, Endevco, Ferroperm Piezoceramics, Lodge Ignition, Sensorex, Vibro-Meter and Wilcoxon Research-whose portfolios form the basis of product lines offered by today's Meggitt Sensing Systems. Meggitt's Endevco® range of piezoelectric, piezoresistive, Isotron® and variable capacitance accelerometers, piezoresistive pressure transducers, acoustic sensors, electronic instruments and calibration systems ensure critical accuracy and reliability within aerospace, automotive, defense, industrial, medical, power generation, R&D, space and test and measurement applications. Endevco® and Isotron® are registered trademarks of the Meggitt group.
