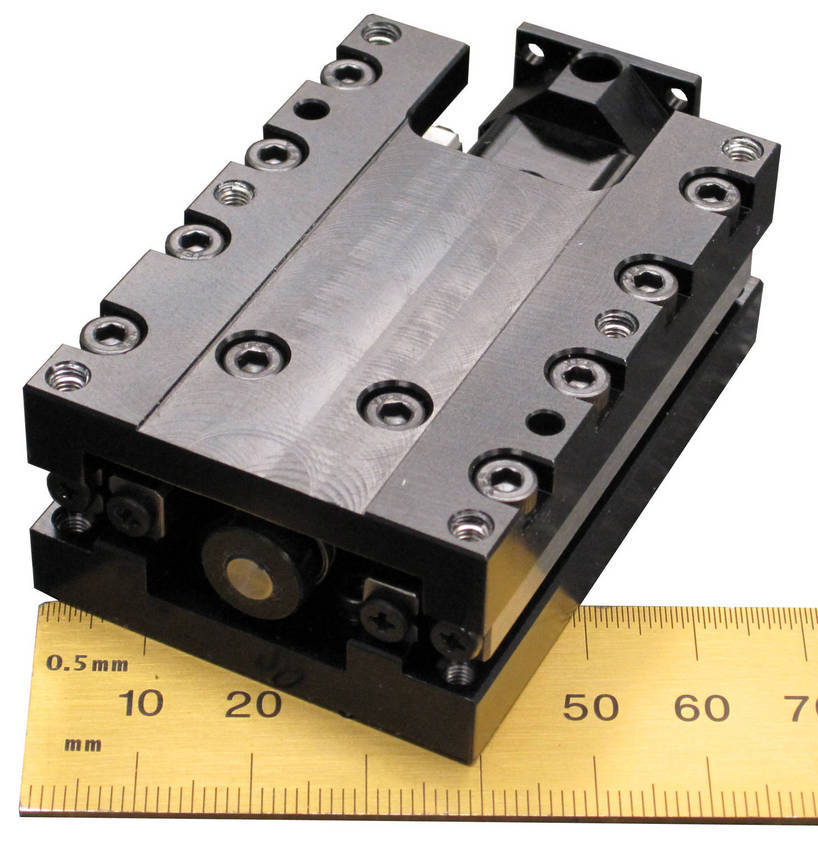

Miniature Linear Positioner suits space-restricted applications.
October 25, 2011 -
Measuring 75 or 90 x 45 x 25 mm, screw-driven MX45S is designed with anti-cage creep cross roller bearings and lets users position up to 15.4 lb of normal load on 5, 15, and 25 mm standard travel lengths. Products can be supplied with leadscrew or ballscrew, which are respectively capable of producing 40 N thrust at linear velocities of 20 and 30 mm/s. Applications include biomedical imaging, fiber optic alignment, semiconductor inspection, and laser diode research.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Parker Electromechanical Automation
5500 Business Park Drive
Rohnert Park, CA, 94928
USA
Parker Releases MX45S Linear Positioner for Space-Restricted Applications
Miniature positioner is based on the award-winning MX80 family.
Rohnert Park, CA - Parker's Electromechanical Automation Division, a leading supplier of motion control technology, is pleased to announce the release of its MX45S linear positioner. The MX45S is a 45 mm wide miniature screw-driven positioner based on the award-winning MX80 family. Like its predecessor, the MX45S has been engineered for OEMs requiring reliable linear positioning in space-restricted applications.
Designed with anti-cage creep cross roller bearings, this positioner allows users to position up to 7 kg (15.4 lbs) of normal load on the available three standard travel lengths (5 mm, 15 mm and 25 mm). The MX45S can be supplied with a high-efficiency leadscrew or a high- precision ballscrew, both of which are capable of producing 40 N of thrust at linear velocities of 20 mm/s and 30 mm/s respectively.
Ideal applications for the MX45S include biomedical imaging, fiber optic alignment, semiconductor inspection and laser diode research.
"The MX45S is designed for applications requiring small incremental movements, micron repeatabilities, smooth motion and high stiffness, all in an ultra-compact package," says Michael Szesterniak, product manager. "In addition to superior performance, the MX45S is offered with several standard options to allow users to match the positioner's performance with the application's requirements."
Additional design features include:
Ultra-compact profile (25 mm high X 45 mm wide X 65, 75 or 90 mm long)
30 mm/s max velocity
Stepper motor driven
Standard multi-axis configurations
In addition to the standard features designed into the MX45S, there are several options available to help match the positioner's performance to the application requirements. These options include rotary and linear encoders, digital limit/home sensor packs and the ability to order and receive one of 11 pre-engineered multi-axis systems.
