Mini-ITX SBC leverages Atom N270 for embedded computing.
January 6, 2009 -
Powered by Intel® 945GSE Express Chipset and 1.6 GHz Intel Atom processor N270, LV-67D incorporates Intel 82945GSE Graphic Memory Controller Hub and Intel I/O Controller Hub 7-M. Its 32-bit 3D graphics core is based on Intel GMA 950 architecture, with multiple graphics display support. Along with up to 2 GB DDR2 SO-DIMM SDRAM, features include RS232C, RS232/422/485, and Intel 82574L Giga LAN ports; 150 MB/s SATA, USB 2.0, and CF interfaces; as well as Mini PCI/PCI/PCIe expansion.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Taiwan Commate Computer Inc.
8F, No. 94, Sec. 1, Shin Tai Wu Rd
Taipei Hsien, ,
Taiwan

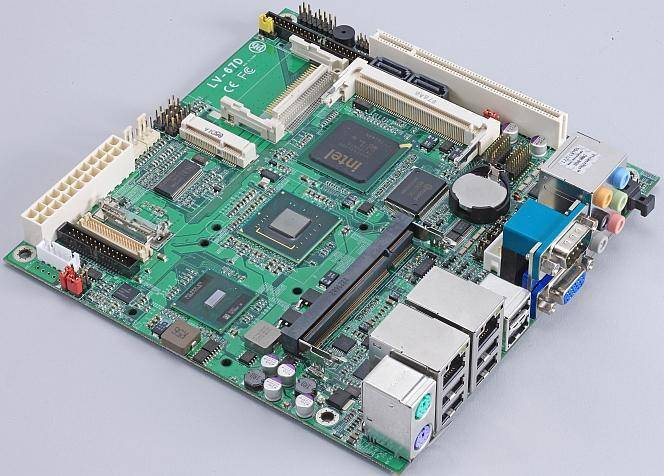

Commell Announces LV-67D Mini-ITX with Atom N270 for Embedded Computing
Mini-ITX SBC with Intel 945GSE & ICH7M provides platform for Intel Atom N270, DDR2 up to 2GB, 2 x Giga LAN, VGA, 2 x SATA, HD Audio, Digital I/O, 6 x COM, PCI, 1 x Mini PCI, 1 x Mini PCIe
(TAIPEI, TAIWAN, 12.25, 2008) Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Mini-ITX mainboard, introduced LV-67D based on the Intel 945GSE Express Chipset, Intel Atom processor N270, implemented in 45nm technology, power-optimized and delivering robust performance-per-watt for cost-effective embedded solutions. The board offers an excellent solution for embedded market such as digital signage, kiosks, POS, thin clients, digital security, residential gateways, commercial and industrial control.
The LV-67D Mini-ITX mainboard consists of the Intel 82945GSE Graphic Memory Controller Hub and Intel I/O Controller Hub 7-M, features power-efficient 32-bit 3D graphics core based on Intel GMA 950 architecture with LVDS or DVI, CRT, HDTV, supports multiple graphics display.
COMMELL's LV-67D Mini-ITX mainboard supports DDR2 SO-DIMM SDRAM memory up to 2GB of system memory, and provides rich I/O capabilities, comes with PS/2 Keyboard and Mouse, 5 x RS232C and 1 x RS232/422/485. Networking is provided by two Intel 82574L Giga LAN. It also offers Realtek ALC888 HD audio, 2 x SATA interface data transfers up to 150MB/s, 8 x USB2.0 ports, and Compact Flash socket. The board delivers flexibility high-bandwidth expansion slots with 1 x Mini PCI, one PCI slot and one PCI Express mini card for custom system configurations and future add-in card upgrades.
LV-67D Features
1) CPU: Intel Atom N270 processor 1.6GHz @ FSB 533MHz.
2) Memory: 1 x DDR2 SO-DIMM up to 2.0GB.
3) Chipset: Intel 945GSE & ICH7M Chipset.
4) VGA Interface: Intel integrated GMA 950 Technology.
5) LVDS/DVI: Onboard 18-bit dual channel LVDS I/F. Optional secondary LVDS(18/24-bit dual channel) or DVI I/F.
6) LAN Interface: 2 x Intel 82574L Giga LAN.
7) Audio: Integrated ICH7-M with Realtek ALC888 HD Audio.
8) Serial ATA: 2 x SATA up to 150MB/s transfer rate.
9) Solid State Disk: IDE supports 44-pin DOM with +5V, one CF Type2 socket.
10) I/O Ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, 1 x SPDIF connector.
11) Extended Interface: One PCI Express mini card socket, one Mini-PCI bus add-in card socket and one PCI slot.
12) GPIO Interface: Onboard programmable 8-bit Digital I/O interface.
13) WatchDog Timer: 256-level generates system reset programmable watchdog timer.
14) Power Requirement: Standard 24-pin ATX power supply.
About COMMELL
COMMELL is a leading supplier of Single Board Computers and focuses on developing the most advanced and reliable IPC products. In addition to promise our customers constantly stay ahead of this competitive business, we are always in search of disruptive & incremental sustaining innovation. We treat every of our customer as partner and provide the best services and total support. The combination of innovation, superior quality, and excellent services will ensure both Taiwan Commate Computer Inc., and our customers always have the competitive edge in the computer world.
For further information about COMMELL is available at http://www.commell.com.tw
