Mini-ITX Embedded Motherboard leverages Cedarview processors.
July 31, 2012 -
Powered by Intel® Atom(TM) N2800/D2550 (Cedarview) processor, MITX-6934 suits network security appliance applications and features LAN bypass segment for fault tolerance. Fanless 4-NIC slim Mini-ITX embedded motherboard, along with option to choose DC or ATX power source, provides DDR3 SO-DIMM Slot capable of accepting up to 4 GB memory. Other features include internal VGA output port, option to boot directly from CF card or from HDD/SSD via SATA II port, and diverse range of I/O options.
|Original Press release |
6th Fl., Blg A,
XiXiang, , 518102

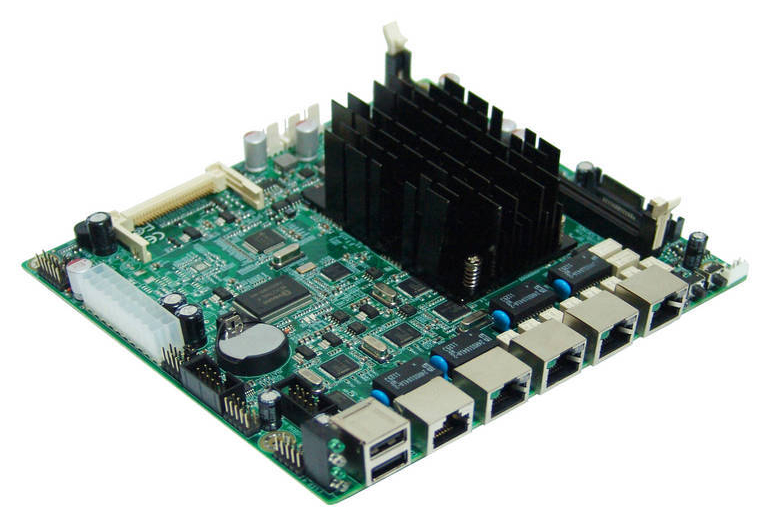

Intel Atom N2800/D2550 "Cedarview" Based Mini-ITX Board with Four Gigabit Ethernet Ports and Bypass Segment
NORCO, a leading manufacturer of embedded computer and an Associate member of the Intel® Intelligent Systems Alliance, introduces MITX-6934, a low profile mini-ITX board with Intel next generation Atom N2800/D2550 Processor, also a new addition to NORCO's extensive line of thin Mini-ITX embedded boards.
Internet and network security is an ongoing battle. With so much confidential information taking a digital format, network security needs are at an all time high. Many networks are adopting the use of a dedicated firewall, but where do you start? Enter the MITX-6934, which is built on the widely adopted Mini ITX form factor enabling quick customization and time to market for small footprint systems and off-the shelf platforms. This 4-NIC slim Mini-ITX embedded motherboard with unique features like the LAN bypass segment to provide fault tolerance is ideal for network security appliance applications. Another great feature is the option to choose either a DC or ATX power source dependent on the application of this device into your existing network infrastructure. Also offered are GPIO enabled LEDs for OEMs to further extend the customizability of this platform. Other specifications include a DDR3 SO-DIMM Slot capable of accepting up to 4GB of memory and an internal VGA output port. A variety of small-footprint enclosures and 1U cases are also available for system integration.
Running on the the latest Intel Atom "Cedarview" processor, this network security and communication appliance board boasts clock speeds of 1.86GHz with both single and dual core offerings. Another great feature essential to network security appliances is the LAN bypass feature. In the unlikely event that this device should fail, or perhaps during a power failure, the LAN bypass feature allows data to flow through passively instead of terminating at the device. The MITX-6934 also gives you the option to boot directly from a CF card, or from a standard HDD or SSD drive via the SATA II port. In addition to the 2 external, and 4 internal USB 2.0 ports, the I/O on this system includes two serial ports one via RJ45 and the other via pin-header. This feature packed embedded board is capable of supporting 64-bit operating systems, making it ideal for any network security or communications applications.
MITX-6934 Key Features:
1. Intel Atom N2800/D2550 "Cedarview"processor
2. Four Gigabit Intel 82583V Ethernet ports with LAN bypass
3. Selection of single DC power or ATX power
4. Built in GPIO ports with LED control options
5. SATAII and compact flash slot available
6. Fanless passive cooling
7. Thin Mini-itx form factor
8. Support 64 bit Operation Systems
Currently MITX-6934 has passed vigorous tests and begin to enter into markets application.
