Milling Cutters offer 16 mm cutting length insert option.

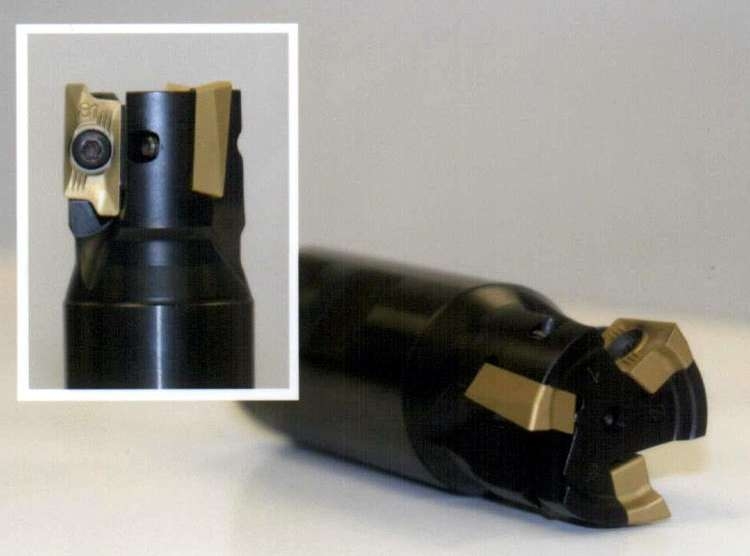

July 12, 2005 - ValMILL™ V590 Square Shoulder End and Face Mills include 7, 10, 13, and 16 mm cutting length insert sizes. They are capable of machining true 90° surfaces, eliminating need for secondary machining operations. Shape of cutters enables ramping and minimizes witness lines where overlap occurs in deep pocket milling applications. Total of 29 tools and 15 inserts are available, with 5 grades, 4 insert top geometries, and corner radii from 0.015–0.250 in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Valenite, Inc.
31700 Research Park Dr., P.O. Box 9636
Madison Heights, MI, 48071 9636
USA
Valenite Bolsters Range of Square Shoulder End and Face Milling Cutters
Expansive new product addition and options, now offering 16mm length inserts, joining 7, 10 & 13mm sizes, fills need for diverse range of work loads and metal removal rates
A little over a year ago, Valenite introduced its ValMILL™ V590 Series of end mills and face mills that incorporate the capability to machine true 90-degree surfaces... thus eliminating the need for the typical secondary machining operations previously needed to produce square shoulder part features. Now, this performance-proven line up of cutter bodies and insert combinations has been expanded, with the introduction of a new size insert—the 16mm cutting length insert option—-joining the existing 7, 10, and 13mm sizes. The new, robust size tooling makes both the cutter body and the insert stronger, allowing for deeper cuts and increased stock removal. The unique insert shape of the new series provides excellent ramping results, plus minimal witness lines where overlap occurs in deep pocket milling applications
In addition to the size advantage, the new group of mills offers an array of options to fit most application requirements, including end mills with Weldon-style shanks, cylindrical shanks and CAT 40 shank configurations, and a variety of end mill lengths from standard to 10" long. The CAT 40 integral end mills come in 2 lengths for each diameter. Both standard ami course density versions are offered for most end mills and face mills.
A total of 29 tools and 15 inserts are available, with four distinct insert top geometries, and corner radii from 0.015" to 0.250." There are also five grades, including multi-layer PVD
TiAlN/TiN and TiN/Al2O3/TiCN CVD coatings for tough machining and uncoated inserts for aluminum and other non-ferrous materials. Overall, the array of insert grades, top form geometries, and now size options means that the V590 series can offer top-rated performance for standard and stainless steels, cast irons, high-temp alloys and non-ferrous parts, and for various depths of cut.
The ValMILL V590 Series of square shoulder mills is designed for multi-task cutting, including roughing, semi-finishing and finish machining for applications such as shoulder milling, pocket and channel milling, edge trimming and face or surface milling. The cutters' unique design delivers smooth cutting action on a variety of materials for contouring, slotting, plunge cuts, drilling and cavity milling.
The design also provides superior chip evacuation properties for longer tool life and part surface finishes, and incorporates quick insert index/changeover capabilities. Performance versatility is further enhanced by the cutters' low horsepower requirements that can allow machines to operate at optimum metal removal rates.
As with all Valenite products, the ValMILL™ V590 Square Shoulder Mills are backed by the company's top-rated ValPro™ Customer Service for ordering, pricing and delivery scheduling, plus a Technical Support staff offering continuously updated product and application data, and recommendations to optimize metal cutting productivity.
Valenite, headquartered in Madison Heights, Michigan with sales and service operations worldwide, is one of the largest suppliers of industrial cutting tools in the world. The company offers a complete line of standard and special indexable-insert turning, milling, grooving, threading, boring and drilling products to a variety of industries. Its product line also includes the VALCOOL® line of cutting fluids. In addition, special high-production tooling for custom machining systems is produced under the MODCO® name and a full range of inline, process and bench gaging systems is produced under the GAGING Systems name.
|
|
|
|
|
|
|
|
