Millimeter-Wave Amps provide broadband performance.
July 31, 2007 -
Available in 10 models covering 33-75 GHz bandwidths, LA Series features P1dB input powers as high as +11 dBm, noise figures as low as 7 dB, and gain options from 10-40 dB. Additional performance characteristics include input/output VSWR of 2.2:1 and gain flatness of ±3.0 dB. Suited for EW, ECM, and instrumentation applications, amps offer full range of packaging configurations and RF interface options, including 2.4 and 1.85 mm coaxial configurations.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Endwave Corp.
130 Baytech Drive
San Jose, CA, 95134
USA
Millimeter-Wave Amps Provide Broadband Performance
SAN JOSE, CA-July 19, 2007--Endwave Corporation (NASDAQ: ENWV), a provider of high-frequency RF modules for telecommunications networks, defense electronics and homeland security systems, has announced the release of new millimeter-wave amplifiers that exhibit exceptional performance characteristics over broad bandwidths.

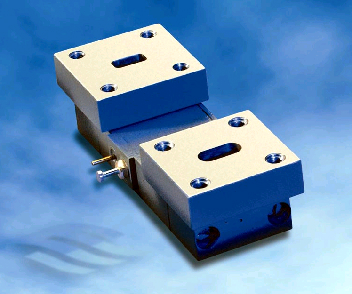

The Endwave LA series of millimeter-wave amplifiers are 10 models covering 33 to 75 GHz in up to 20 GHz bandwidths. They feature P1dB input powers as high as +11 dBm, noise figures as low as 7 dB, and gain options from 10-40 dB. Additional performance characteristics include input / output VSWR of 2.2:1, and gain flatness of +/-3.0 dB.
Innovative PHEMT device technology and thin-film hybrid construction are used to achieve these characteristics across these broad bands. They are ideal for EW, ECM, and instrumentation applications. Endwave offers a full range of packaging configurations and RF interface options, including 2.4 mm, 1.85mm coaxial configurations -- plus waveguide options to cover all the various millimeter-wave bandwidths.
They can be modified with any of the following options: variable gain control, input/output isolators, input limiters, limiting amplifiers, TTL switching, waveguide interfaces, phase tracking, temperature compensation, detector output, gain matching, hermetic packages, and bias-T outputs. Environmental screening is also available.
About Endwave
Endwave Corporation designs, manufactures, and markets RF modules that enable the transmission, reception and processing of high-frequency signals in wireless telecommunications networks, defense electronics and homeland security systems. Endwave Defense and Security Products Division specializes in the unique requirements of defense, homeland security, and other government end-use applications. The company's RF modules consist of microwave components and subsystems, including integrated transceivers, JCA Amplifiers(TM), ALC Log Amplifiers(TM), frequency multipliers, up and down converters, oscillators, synthesizers, microwave switch arrays, and other custom multi-function assemblies (MFAs). Endwave has 42 issued patents covering its core technologies including semiconductor and proprietary circuit designs. Corporate headquarters are located in San Jose, CA, with other operations in El Dorado Hills, CA; Diamond Springs, CA; Andover, MA; and Chiang Mai, Thailand. www.endwave.com
Company Contact:
Mark Hebeisen, mark.hebeisen@endwave.com
Vice President, Endwave
Marketing & Business Development
978-686-4400, x105
|
|
|
|
|
|
|
|
