Mild Steel, Machinable Clamp suits VMC, HMC applications.
October 26, 2007 -
Offering means to hold lathe parts from internal diameter, No. 9 ID Xpansion Clamp has internal holding dimension of 6.89 in. that can be machined down to 1.15 in. Concentricity of .0005 can be held because clamp is machined to match individual workpiece, and flange diameter is held to close tolerance for precision mounting of multiple parts on workcube or fixture plate. Once machined, low-profile clamps can be tightened with hex key or hydraulic pull cylinder.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Mitee-Bite Products Inc.
340 Rte. 16B, P.O.box 430
Center Ossipee, NH, 03814
USA

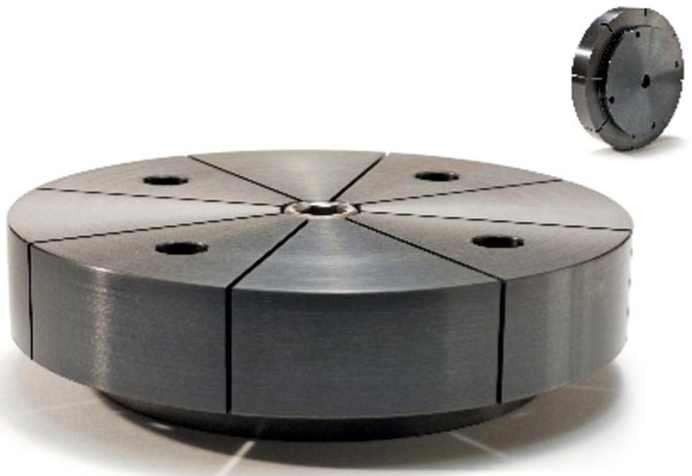

New #9 ID Xpansion Clamps
Mitee-Bite introduces the new #9 ID Xpansion Clamp for VMC and HMC applications. This new addition to the ID Xpansion line has an internal holding dimension of 6.89 inches which can be machined down to 1.15 inches. This mild steel, machinable clamp is the ideal way to hold lathe parts from an internal diameter. Concentricity of .0005 can be held because the clamp is machined to match the individual workpiece.
The flange diameter, which is the same dimension as the #8 ID Xpansion clamp, is held to a close tolerance for precision mounting of multiple parts on a workcube or fixture plate. Once machined, these low profile clamps can be tightened with a hex key or hydraulic pull cylinder. The screw, with the tapered head, goes through the clamp and mounts directly into the fixture plate or pull cylinder for additional rigidity.
Contact
Mitee-Bite Products Inc. for More Information,
www.miteebite.com
or 800-543-3580.
|
|
|
|
|
|
|
|
