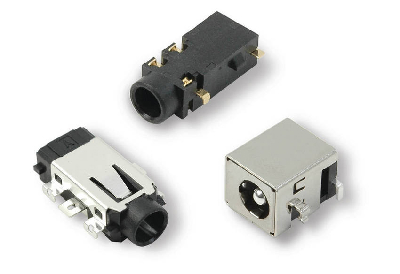

Mid-Mount Connectors feature low-profile design.
August 5, 2011 -
Suited for consumer electronics and electrical equipment, Mid-Mount Connectors include PCB 3.5 mm audio jacks and 2.5 mm center pin DC power jacks. Switch options for audio jacks include ring switch, tip switch, and 2 or 3 switch configurations. Fully shielded for EMI suppression, DC power jacks are rated 16 Vdc at 5 A. All connectors are RoHS-compliant.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
CUI, Inc.
20050 S.W. 112th Ave.
Tualatin, OR, 97062
USA
CUI Releases Mid-Mount Connector Offering
TUALATIN, OR - CUI Inc announced an addition to their Components line that now includes mid-mount pc board 3.5 mm audio jacks and 2.5 mm center pin dc power jacks. These mid-mount connectors are ideally suited for low profile design requirements in consumer electronics applications.
Switch options for the audio jacks include ring switch, tip switch, and two or three switch configurations. The dc power jacks are fully shielded for EMI suppression with a rating of 16 Vdc @ 5 A. All connectors are RoHS compliant.
The new mid-mount connectors are available through Digi-Key with prices starting at $0.608 per unit at 1,200 pieces. Please contact CUI for OEM pricing.
Summary
Availability: 6-8 weeks OEM orders
Possible applications: Consumer electronics and electrical equipment
Primary features: Edge-mount PCB capability
Cost: Starting at $0.608 per unit at 1,200 pieces through Digi-Key
Product Summary
2.5 mm center pin dc power jacks
PJ-068B-SMT
PJ-069B-SMT
3.5 mm audio jacks
SJ-3501-SMT
SJ-3502-SMT
SJ-3503-SMT
SJ-3506-SMT
SJ-43504-SMT
SJ-43614-SMT
SJ-43615RS-SMT
SJ-43615TS-SMT
SJ-43616-SMT
SJ-43617-SMT
About CUI Inc
CUI Inc is a technology company dedicated to the development, commercialization, and distribution of new, innovative electro-mechanical products. Over the past 20 years, CUI has become a recognized name in electronic components worldwide in the areas of power, interconnect, motion control, and sound. CUI's solid customer commitment and honest corporate message are a hallmark in the industry. CUI is a wholly-owned subsidiary of CUI Global, Inc.
For more information, please visit www.cui.com.
|
|
|
|
|
|
|
|
