Micro-ohmmeter suits workshop, field, or test facilities.
May 16, 2006 -
Model DO7010 portable digital micro-ohmmeter has 600-60 ohm measuring range with 0.1-10 ohm resolution. Unit measures switchable current levels of 1 or 10 A on all except highest range. Measurements are triggered by lead contact to test devices while optional remote hand terminal can control tester at 15 m distance. Ohmmeter features 4-terminal measurement, auto average of forward/reverse measurement, and 1,000 reading memory.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
SEAWARD ELECTRONIC LTD
Bracken Hill
County Durham, , SR8 2SW
United Kingdom

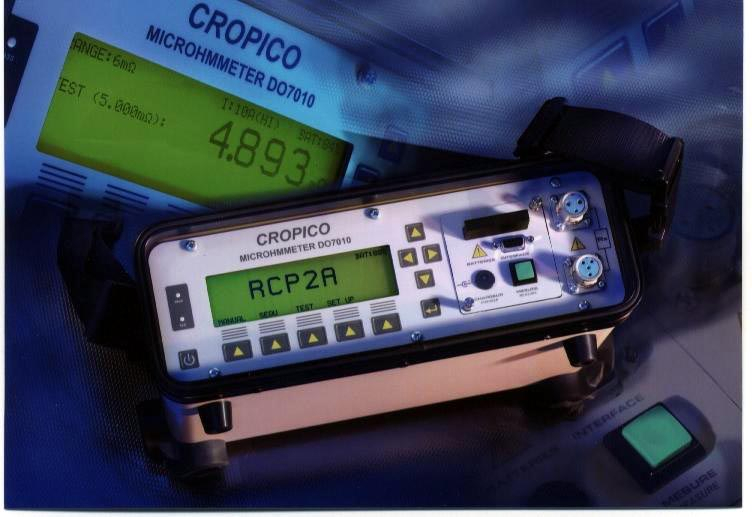

Seaward Group Introduces Cropico's DO7010 Digital Low-Resistance Ohmmeter
Instrument combines reliability with ease of use
Cropico, a division of the renowned electrical safety testing provider The Seaward Group, introduces the DO7010 portable digital microhmmeter. Developed with the latest solid state and microprocessor techniques, the DO7010 ensures maximum low resistance measurement reliability and the most user-friendly features, with an exceptionally rugged and compact design.
The instrument is built for low resistance and bond resistance measurement, and is ideal for use in the workshop, field, or test facilities. With a measuring range of 600 Ω to 60Ω with 0.1 and 10Ω resolutions respectively, the lightweight DO7010 can measure with switchable current levels of 1A or 10A on all except the highest range. Externally recharged NiMh battery packs are easily changeable via the front panel to minimize downtime.
An LCD panel displays full information on measurement configuration, and a single start button ensures ease of use. The DO7010 triggers measurements by the lead contact directly to the test devices, enabling fast single person operation. A remote hand terminal is also available to fully control the tester at up to 15m distance.
Other features include true 4-terminal measurement to eliminate lead resistance errors, auto average of forward/reverse measurement and sequence testing with an available 1000 reading memory. The data logging function also permits downloading of test sequences from an XL spreadsheet and uploading of test results to the spreadsheet.
About Cropico
Since its inception as the Croydon Precision Instrument Company in 1952, the Cropico name has become synonymous with accuracy, innovation and high quality. For over half a century, the company has produced a range of high-quality measuring instruments. Over the last decade, a dedicated R&D facility in Norfolk, UK has pursued an exciting program of product research, ultimately fueling Cropico's continued innovation in design and manufacturing techniques and firmly establishing the company as one of Europe's leading manufacturers of electrical measuring instruments. For more information, visit www.cropico.com or email info@cropico.com.
About Seaward Group
The Seaward Group is a leading global provider of products and services dedicated to helping customers meet their obligations for electrical safety, and offers specialized test and measurement solutions to ensure electrical safety in distribution, electrical installation, and electrical products. The Seaward Group services a variety of industries including power utilities, general manufacturing, appliance, equipment rental, medical, quality control, electrical support, and contracting. The Group is dedicated to using innovation to help customers meet legal obligations for electrical safety in a way that enhances productivity and adds value to their businesses.
