Micro-Sized Plug-in Servo Drives have diverse functionality.
August 17, 2009 -

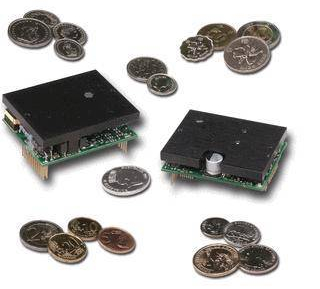

Occupying 76 x 51 mm footprint, Z drives are capable of torque, velocity, and position operating modes for brushed, brushless, or voice coil motors. Input selection includes ±10 V analog, PWM, Step/Direction, Encoder Following, RS-485/232, and CANopen network. Each drive weighs 100 g or less, including heat sink, and delivery capabilities scale up to 20 A continuous/40 A peak anywhere from 10-90 Vdc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Servo2Go.com
4001 Kennett-Pike, Suite 134-583
Greenville, DE, 19807
USA
New Z Series µ-Sized Plug-in Servo Drive Modules
Greenville, DE - Servo2Go.com has just added remarkable new additions to it's broad range of highly responsive analog and feature rich digital servo drives from Advanced Motion Controls. The 'Z' drives are µ-sized servo drives requiring less space than a standard business card and weigh about the same as two golf balls!!!
The 'Z' drives are capable of torque, velocity and position operating modes for brushed, brushless or voice coil motors. Inputs include: ±10V analog, PWM, Step/Direction, Encoder Following, RS-485/232 and CANopen network interfacing and much more.
Some models are dedicated to operate in either torque or velocity modes only, for brushed or brushless motors only, and from certain command inputs only. The strategy is to reduce overall system costs by establishing a minimal feature set to fulfill the needs. However, these same units have extremely high current loop bandwidth for response time critical / challenging applications. Other models are fully configurable by the user to select torque, velocity and position modes as needed. These versions come complete with programmable I/O, flexible motor selection, ease of loop tuning, optional networking (CANopen, RS-485, etc.). Complete configuration and diagnostics through setup software is inclusive.
'Z' drives fit in an incredibly small 76 mm x 51 mm footprint and most weigh a mere 100 grams or less - including heat sink! Yet, they are so powerful with versions that have delivery capabilities of up to 20 Amps continuous / 40 Amps peak anywhere from 10 - 90 VDC. That's >1kW CONTINUOUS from this tiny package. Reduced amperage versions also exist to minimize your costs too.
More information on the New Z Series µ-sized Plug-in Module Servo Drives from Servo2Go.com can be viewed at- http://www.servo2go.com/category.php?...
