Micro-ATX Motherboard suits multimedia display applications.
June 21, 2012 -
Powered by Intel® 3rd Generation Core(TM) processors and Intel® Q77 chipset, MB-i77Q0 features Intel® Turbo boost, vPro, Rapid Storage Technologies, and AMT8.0. There are 4 DDR3 Long-Dimm sockets that support 32 GB max SDRAM system memory, and I/O includes 2 SATA3, 4 SATA2, 4 Serial, 4 USB 3.0, 10 USB 2.0, 1 PCI, 1 PCIe x 1, 1 PCIe x 16, and 1 PCIe x 4 in x8 slot. Intel HD graphics 2500 and 4000 capabilities are complimented by diverse display interface support.
Original Press release
Arbor Technology Corp.
5F, No. 738 Zhong Zheng Rd.
, ,
Taiwan
ARBOR Announces Micro-ATX Motherboard Powered by Intel® 3rd Generation Core(TM) Processors

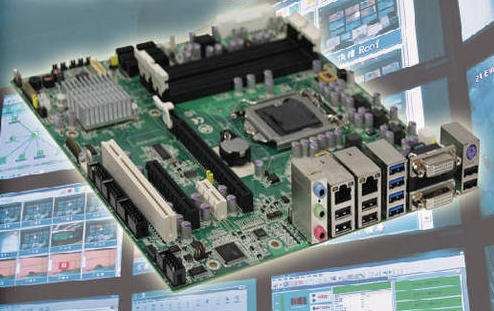

ARBOR Technology has launched latest MB-i77Q0, the Micro-ATX form factor motherboard, supporting Intel® 3rd Generation Core(TM) processors which will be backwards-compatible with the 2nd Generation family. Comes with Intel® Q77 chipset, the MB-i77Q0 features Intel® Turbo boost, vPro, Rapid Storage Technologies and AMT8.0, which reducing power consumption and risk of data loosing while improving performance. With four DDR3 Long-Dimm sockets, the MB-i77Q0 supports a maximum of 32GB SDRAM system memory.
Besides standard I/O interfaces, ARBOR MB-i77Q0 offers abundant expansion capability such as 2 x SATA3, 4 x SATA2, 4 x Serial ports (supporting 1 x RS-485 auto-flow control), 4 x USB 3.0, 10 x USB 2.0, 1 x PCI, 1 x PCIe x 1, 1 x PCIe x 16, and 1 x PCIe x 4 in x8 slot. Through the rich expansions, MB-i77Q0 can be used for various industrial applications.
Featuring Intel HD graphics 2500 and 4000, the MB-i77Q0 supports wide variety of display interfaces including 1 x DVI-I (either high resolution 2048 x 1536 Analog RGB or 1920 x 1200 TMDS), 1 x DVI-D (with resolution up to 1920 x 1200), dual channel 24-bit LVDS (with resolution up to 1600 x 1200) as well as 3 independent displays, which offers a versatile display choices. With its high performance and excellent graphic computing, ARBOR MB-i77Q0 is perfectly suitable for multimedia display applications such as digital signage, gaming, kiosk, digital surveillance and HMI. More information, please visit ARBOR website: www.arbor.com.tw
About ARBOR
Since founded in 1993, ARBOR Tech. has been specializing in embedded computing and networking solutions to help realize the vision of "Digital Enterprise & Digital Life." In terms of the outstanding design capability, severe test and quick response to market trends, ARBOR provides a full fleet of embedded computing platforms from board to system, which let customers cover the needs of medical & healthcare, industrial control, DVR surveillance, transportation control, POS & Kiosk. ARBOR was awarded the Taiwan Symbol of Excellence Award, Best Choice Award and National Brand YuShan Award by our products, which verifies our efforts and commitment to embedded computing.
