Metal Film Resistors suit high-precision applications.
December 29, 2010 -

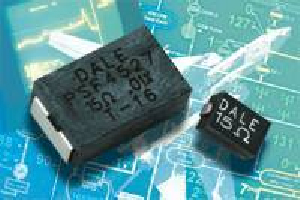

Available in 2012 and 4527 case sizes, PSF Series features temperature coefficients down to ±5 ppm/°C and tight tolerances to 0.01%. Model PSF2012, measuring 0.200 x 0.125 in. with 0.096 in. profile, offers 0.125 W power rating and 200 V working voltage, while Model PSF4527 measures 0.455 x 0.275 in. with 0.167 in. profile, 0.25 W power rating, and 300 V working voltage. Both operate over temperature range of -55 to +150°C and are encapsulated for harsh environments.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Vishay Intertechnology, Inc.
63 Lincoln Hwy., P.O. Box 4004
Malvern, PA, 19355 2143
USA
Vishay Intertechnology's New Surface-Mount PSF Series
Vishay Intertechnology's New Surface-Mount PSF Series of High-Precision, High-Stability Metal Film Resistors Features Temperature Coefficients Down to ±5ppm/°C and Tight Tolerances to 0.01% in 2012 and 4527 Case Sizes
MALVERN, PENNSYLVANIA - Vishay Intertechnology, Inc. (VSH: NYSE) today released a new surface-mount series of high-precision, high-stability metal film resistors in the 2012 and 4527 case sizes. For excellent stability across a range of environmental conditions, the PSF resistors feature extremely low temperature coefficients down to ± 5 ppm/°C and tight tolerances to 0.01 %.
Offering circuit designers a surface-mount version of Vishay's axial-leaded PTF series, the PSF devices are optimized for high-precision applications in precision test and measurement systems and military, aerospace, and industrial equipment and instrumentation.
Measuring 0.200 in. by 0.125 in. [5.08 mm by 3.18 mm] with a 0.096 in. [2.44 mm] profile, the PSF2012 offers a 0.125 W power rating and 200 V working voltage. The PSF4527 measures 0.455 in. by 0.275 in. [11.56 mm by 6.98 mm] with a 0.167 in. [4.24 mm] profile, and features a 0.25 W power rating and 300 V working voltage.
The device offers compliant wraparound terminations that eliminate the risk of solder fillet cracking due to differences in coefficient of thermal expansion (CTE), as well as a rugged molded encapsulation to optimize performance in harsh environments. The resistors operate over a temperature range of -55°C to + 150°C.
Device Specification Table:
Part # Power Max. Temperature Tolerance Resistance range
rating working coefficient (± %) (ohm)
voltage (± ppm/°C)
PSF2012 0.125 W 200 V 5, 10, 15, 25 0.01, 0.02, 0.05,
0.1, 0.25, 0.5, 1 15 to 100 k
PSF4527 0.25 W 300 V 5, 10, 15, 25 0.01, 0.02, 0.05,
0.1, 0.25, 0.5, 1 15 to 500 k
Samples and production quantities of the PSF resistors are available now, with lead times of 15 to 18 weeks.
