Medical Grade Power Supply has max. overall output of 300 W.
January 21, 2009 -

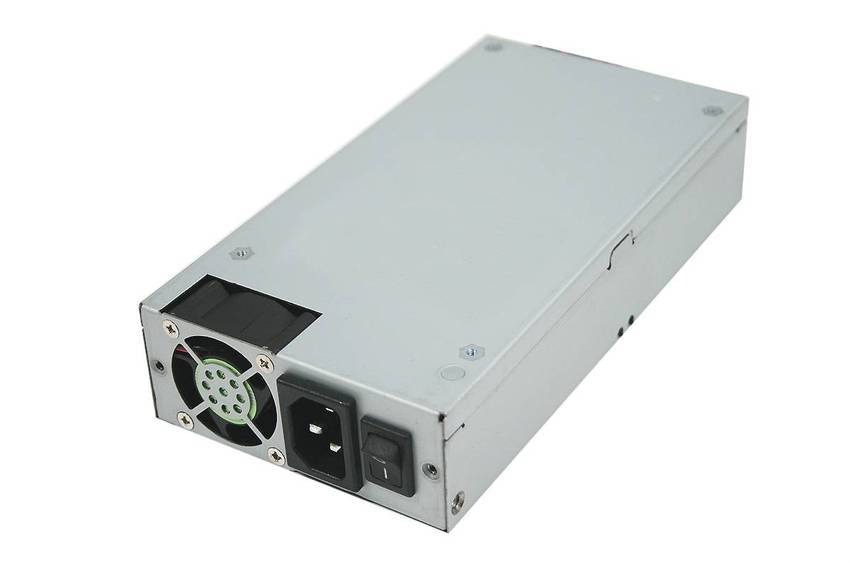

Measuring 7.48 x 3.94 x 1.59 in., PC power supply, TMPC-300-1U comes with on/off switch, low noise ball-bearing fan, and standard output cableset. With 90-264 universal input and active PFC that complies with EN61000-3-2 standards, product is UL, cUL, VDE, CE approved to UL 60601-1, EN 60601-1, and IEC 60601-1 medical standards. Hold up time is 17 millisec minimum at full load, nominal input voltage and power fail signal delay time is 1 millisec minimum. It operates between 0-50°C.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Tumbler Technologies, Inc.
3350 Scott Blvd., Building 13
Santa Clara, CA, 95054
USA
Medical Grade 300W PC Power Supply Ideal for 1U Installation
January 7, 2009 - Santa Clara, California, USA - Tumbler Technologies + TRUMPower launches the 300W medical grade TMPC-300-1U, which has a height of 1.59 inches that makes the PC power supply suitable for 1U and other medical applications where height is limited.
With a wide 90-264 universal input and active PFC that complies with EN61000-3-2 standards, the TMPC-300-1U is UL, cUL, VDE, CE approved to UL 60601-1, EN 60601-1, and IEC 60601-1 medical standards. The power supply complies with EN60601-1-2 EMC standards, including EN55011/FCC/VCCI class B (conducted and radiated emissions), EN61000-3-2, EN61000-4-2, EN61000-4-3, EN61000-4-5, EN61000-4-11. The unit is CE marked and RoHS compliant and meets EPS 1U 2.0 standards as well. Before delivery, the power supply withstands 100% burn-in test @ 50°C and 100% hi-pot test. It has an MTBF > 100,000 hours and earth leakage current of 170µA @264 VAC, typically.
The TMPC-300-1U has DC output voltages and maximum loads of +3.3V/16.0A, +5V/18.0A, +12V1/16.0A, +12V2/16.0A, -12V/0.5A, -5V/0.2A, +5Vsb/2.5A. The maximum overall output is 300W, with total output on +12V1, +12V2, +5V, +3.3V not exceeding 281W and total output on +3.3V, +5V limited to 120W. The efficiency of the unit is as high as 80% at full load. Measured at 7.48" x 3.94" x 1.59", the power supply comes with an on/off switch, a low noise ball-bearing fan, and a standard output cableset that can meet the requirements of most PC-related applications. But any other requirements of the cableset can be accommodated as well.
The unit features input line fuse, output overvoltage, overload and short circuit protections. Overvoltage protections are 3.5-4.8V for +3.3V, 5.5-7.0V for +5V, 13.4-15.8V for +12V1 and +12V2, respectively. Overload protection is 150% maximum of the rated output. Hold up time is 17 milliseconds minimum at full load, nominal input voltage and power fail signal delay time is 1 millisecond minimum. The power supply operates between 0°C-50°C and can be stored at -20°C-80°C.
The TMPC-300-1U is priced at US$279 in OEM quantity and lead time is 6-8 weeks ARO.
To find out more information on the TMPC-300-1U, please visit http://www.trumpower.com/library/tmpc... or email us.
Tumbler Technologies + TRUMPower has been delivering excellent quality medical and commercial grade AC/DC switching power supplies and DC/DC converters since 1991. The company's medical grade power supplies range from 10W to 650W in wall mount, desktop, open frame, and ATX PC form factors. Tumbler Technologies + TRUMPower can accommodate to OEM's needs, whether they are low volume or high volume power supplies, by providing prompt responses and cost-effective power solutions. As a result, it has gained a substantial number of satisfied customers over the years and continues to do so.
For more information on the company and its other products, visit www.trumpower.com or email us.
|
|
|
|
|
|
|
|
