Medical Grade Power Adapters deliver 180 W.
February 9, 2010 -
Featuring class I and class II insulation, TMP180 Series AC/DC Desktop Power Adapters offer single output voltages of 19, 24, or 28 V with continuous output power up to 180 W. Units have 90-264 Vac continuous input range with 0.95 power factor and withstand voltage of 2,000 Vac from input to output. With standby power consumption lower than 0.5 W and efficiency higher than 87%, RoHS-compliant units are in compliance with CEC and Energy Star efficiency level V requirements.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Tumbler Technologies, Inc.
3350 Scott Blvd., Building 13
Santa Clara, CA, 95054
USA
TRUMPower's Medical Grade Power Adapters Offer High Power of 180W

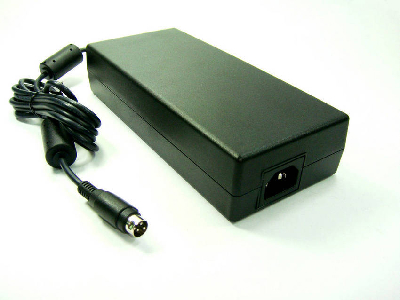

Santa Clara, California, USA-Tumbler Technologies + TRUMPower introduces the TMP180 series of medical grade AC/DC desktop power adapters, which has both class I and class II insulation. Offering high power of 180W, the TMP180 series is an addition to the TMP150 series of 150W class I and class II medical power adapters that the company has.
The TMP180 class II units, furnished with an IEC 320/C8 AC inlet without a ground pin, are doubly insulated to provide proper safety protection where the availability and integrity of an earth cannot be guaranteed. Class I units come with an IEC 320/C14 AC inlet that has a ground pin.
The TMP180 series is approved to UL 60601-1, CSA C22.2 No. 601.1, EN 60601-1 medical standards and complies with EN60601-1-2 EMI standards including EN55011/FCC/VCCI class B (conducted and radiated emissions), EN61000-3-2, EN61000-4-2, EN61000-4-3, EN61000-4-5, EN61000-4-11. The earth leakage current is 300 µA maximum @ 264 VAC, 60 Hz. With standby power consumption lower than 0.5W and efficiency higher than 87%, the units are in compliance with CEC and Energy Star efficiency level V requirements. They also comply with RoHS requirements.
The TMP180 series offers standard single output voltages of 19V, 24V or 28V with continuous output power of up to 180W. Non-standard output voltages are available upon request. The units come with a 4-pin power DIN plug as the standard output connector. TRUMPower offers many other connector options and can accommodate special requirements.
The series has a 90 to 264 VAC continuous input range with 0.95 power factor. The withstand voltage is 2000VAC from input to output. The units can operate from 0°C to +40°C and can be stored at -20°C to +80°C. The MTBF is higher than 100,000 hours at full load and 25°C ambient per MIL-HDBK-217F. Output protections include short-circuit, overpower, and over temperature.
The TMP180 series is competitively priced at $115/ea in OEM quantity.
For more information regarding the TMP180 series, please visit http://www.trumpower.com/library/tmp180.pdf
Tumbler Technologies + TRUMPower has been delivering excellent quality medical and commercial grade AC/DC switching power supplies and DC/DC converters since 1991. The company's medical grade power supplies range from 10W to 650W in wall mount, desktop, open frame, and ATX PC form factors. Tumbler Technologies + TRUMPower can accommodate OEM's needs, whether they are low volume or high volume power supplies, by providing prompt responses and cost-effective power solutions. As a result, it has gained a substantial number of satisfied customers over the years and continues to do so.
For more information on the company and its other products, visit www.trumpower.com or email us at sales@trumpower.com
|
|
|
|
|
|
|
|
