Measuring Device brings sub-micron accuracy to plant floor.
December 11, 2008 -

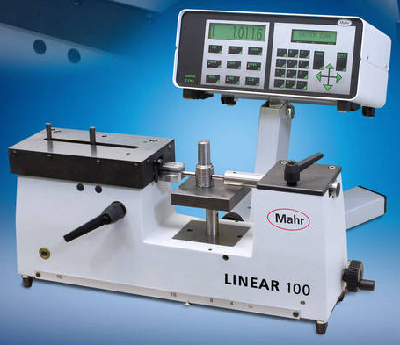

Used to measure lengths and IDs/ODs directly on shop floor, Linear 100 has direct range up to 2 in. and application range up to 4 in. Adjustable 3 x 3 in. measuring table and 4-40 oz adjustable measuring force relate to OD measurement, while 4 x 7.3 in. worktable allows for precision part positioning for ID measurement. Internal/external measurements, as well as combined internal/external measurements, are possible without remastering.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Mahr Federal Inc.
1144 Eddy St.
Providence, RI, 02905
USA
New Mahr Federal Precision Length Machine Brings Sub-Micron Measurement to the Shop Floor
PROVIDENCE, RI -- Mahr Federal has introduced a new high precision, universal length measuring instrument for rapid, high accuracy internal and external measurements directly on the shop floor. With a direct measuring range of up to 50 mm (2 in) and an application range of up to 100 mm (4 in), the simple design of the new Mahr Federal Linear 100 makes it possible to carry out measurements quickly and to easily adapt to new measurement tasks.
"The Linear 100 is a solution to the demand for precision length measurement on the shop floor," said George Schuetz, Mahr Federal's Director of Precision Gages. "It is the ideal shop tool when the measuring requirements go beyond the capabilities of the typical comparative gage. With its fundamentally sound measuring principle and high accuracy readout, in the correct environment the Linear 100 can put sub micron measurements directly into the hands of the precision machinist."
The compact Linear 100 universal measuring instrument can be used to measure both lengths and diameters. This allows multifaceted measuring tasks to be accomplished, such as measuring the dimension over two balls on gear ODs.
Key features of the Linear 100 include an adjustable 76 x 76 mm (3 x 3 in) measuring table for precise measuring position adjustment of the part when measuring ODs, and 4 to 40 oz (1 N to 11 N) adjustable measuring force that remains virtually constant over the entire measuring range. For ID measurement, the 100 mm (4 in) x 185 mm (7.3 in) worktable allows for precision part positioning for measurement. The integrated measuring system is based on the Abbe principle (i.e., the measuring arm and reference are in line) which eliminates cosine errors.
Internal/External measurements, as well as Combined Internal/External measurement, are possible without remastering, and easily interchangeable measuring anvils provide increased part measuring versatility. The solid cast body reduces stresses and twisting error, and a large digital display provides clear readouts with selectable ID/OD results and preset values. An RS-232 interface makes it easy to transfer output data to PCs and optional software allows measured values to be transferred to Windows programs such as Microsoft® Excel.
Mahr Federal Inc., a member of the Mahr Group, is known worldwide for its expertise in providing dimensional measurement solutions. The ISO 9001:2000-certified company is headquartered in Providence, RI, and manufactures and markets a wide variety of dimensional metrology products. Mahr Federal's calibration system is accredited to ISO 17025 NVLAP Lab Code 200605-0.
